Same model may have multiple batches, images only for reference.

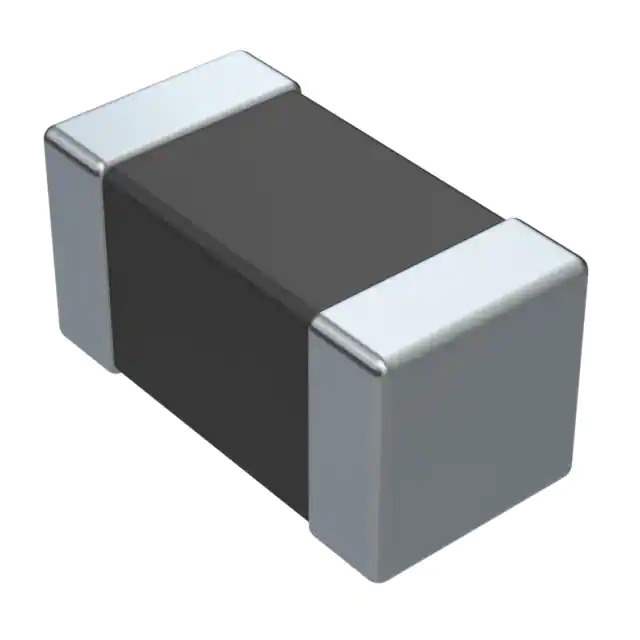

HPZ1005U221-R70TF Real Image
Same model may have multiple batches, images only for reference.

HPZ1005U221-R70TF

Part No HPZ1005U221-R70TF
Manufacturer Sunlord
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 220 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Sunlord
Series HPZ
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 220 Ohms @ 100 MHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 250mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.026" (0.65mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Standard Package 10,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 746049-HPZ1005U221-R70TF
Ultra Librarian 3D Model Ultra Librarian HPZ1005U221-R70TF CAD Model

Description

The HPZ1005U221-R70TF is a ferrite bead and chip filter manufactured by Sunlord.

  • Product Name: HPZ1005U221-R70TF
  • Manufacturer: Sunlord
  • Series: HPZ
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Application: Power Line Filtering
  • Maximum Current Rating: 700mA
  • Package: Tape and Reel
  • Standard Package: 10,000 pcs
  • Height: 0.026" (0.65mm)
  • Impedance: 220 Ohms @ 100 MHz
  • DC Resistance (DCR): 250mOhm max
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
