Same model may have multiple batches, images only for reference.

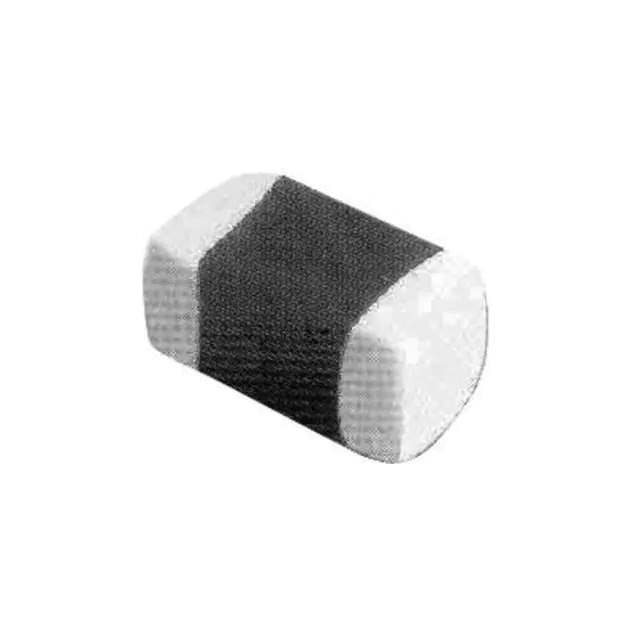

MPH201210S4R7MT Real Image
Same model may have multiple batches, images only for reference.

MPH201210S4R7MT

Part No MPH201210S4R7MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 4.7UH 800MA 312MOHM SM / 4.7 μH Shielded Multilayer Inductor 800 mA 312mOhm Max 0805 (2012 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sunlord
Series MPH
Package Tape & Reel
Product Status Active
Type Multilayer
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 230mA
Shielding Shielded
DC Resistance (DCR) 312mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 885777-MPH201210S4R7MT
Ultra Librarian 3D Model Ultra Librarian MPH201210S4R7MT CAD Model

Description

The MPH series fixed inductor is a multilayer inductor with a size of 0.079" L x 0.049" W (2.00mm x 1.25mm).

  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Shielded: Yes
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mount
  • Package/Case Size: 0805 (2012 Metric)
  • DC Resistance (DCR): 312mOhm Max
  • Current Rating: 800 mA
  • Self-Resonant Frequency: 30MHz
  • Packaging: Tape & Reel
  • Status: Active
  • Manufacturer: Sunlord
