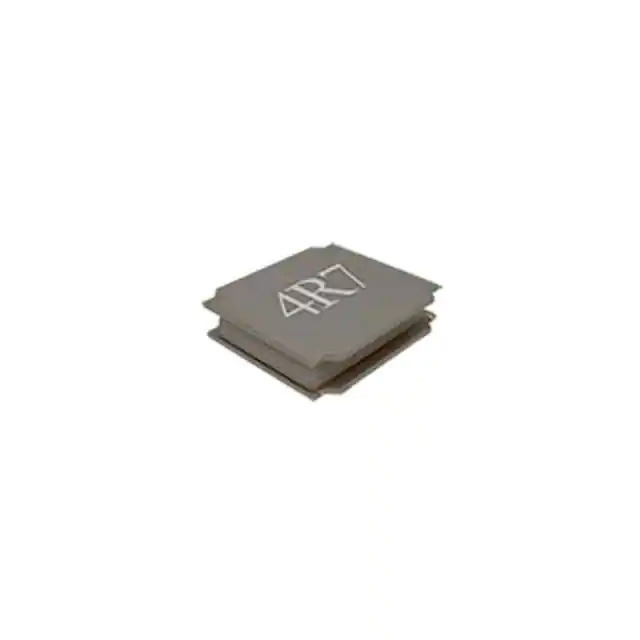

Same model may have multiple batches, images only for reference.
WPN252010HR33MT Sunlord
Same model may have multiple batches, images only for reference.

WPN252010HR33MT

Part No WPN252010HR33MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 330NH 3.5A 39MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series WPN
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 4.8A
Shielding Shielded
DC Resistance (DCR) 39mOhm Max
Q @ Freq -
Frequency - Self Resonant 117MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370669-WPN252010HR33MT
Ultra Librarian 3D Model Ultra Librarian WPN252010HR33MT CAD Model

Description

The WPN252010HR33MT is a drum core, wirewound inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd.

  • Series: WPN
  • Mounting Type: Surface mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.039" (1.00mm)
  • Inductance: 330 nH
  • Current Rating: 3.5 A
  • Tolerance: ±20%
  • DC Resistance (DCR): 39mOhm Max
  • Shielding: Shielded
  • Operating Temperature: -40°C to 125°C
