Same model may have multiple batches, images only for reference.

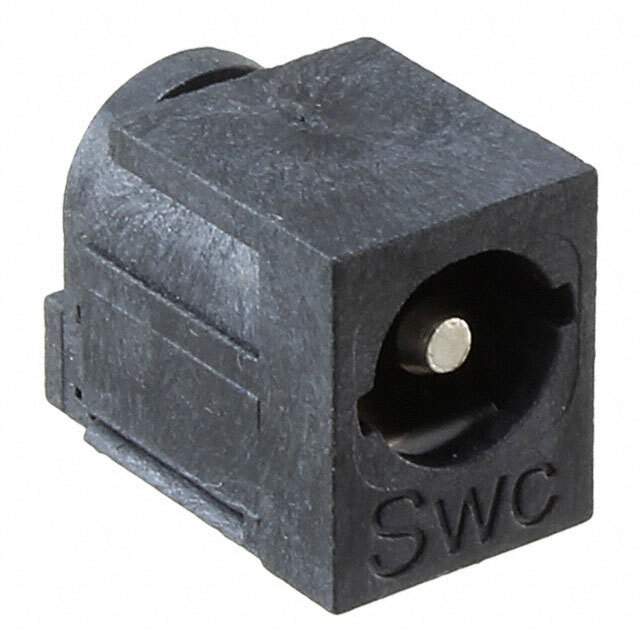

RAPC712BK Real Image
Same model may have multiple batches, images only for reference.

RAPC712BK

Part No RAPC712BK
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098") , 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Type Through Hole, Right Angle
Termination Solder Eyelet(s)
Shielding Unshielded
Current Rating (Amps) 5 A
Contact Material - Plating Tin
Housing Material Thermoplastic
Contact Material Copper Alloy
Body Color Black
Base Product Number RAPC71
Standard Package 2,500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336827-RAPC712BK
Ultra Librarian 3D Model Ultra Librarian RAPC712BK CAD Model

Description

The Switchcraft Inc. RAPC712BK Barrel Connector is a power jack with two conductors and two contacts.

  • Switch: Single, Normally Closed
  • Contact Material: Copper Alloy, Tin Plating
  • Mating Diameter (Industry Recognized): 2.50mm ID (0.098") and 5.50mm OD (0.217")
  • Mounting Type: Through Hole
  • Mounting Orientation: Right Angle
  • Package: Bulk
  • Application: Power Connectors
