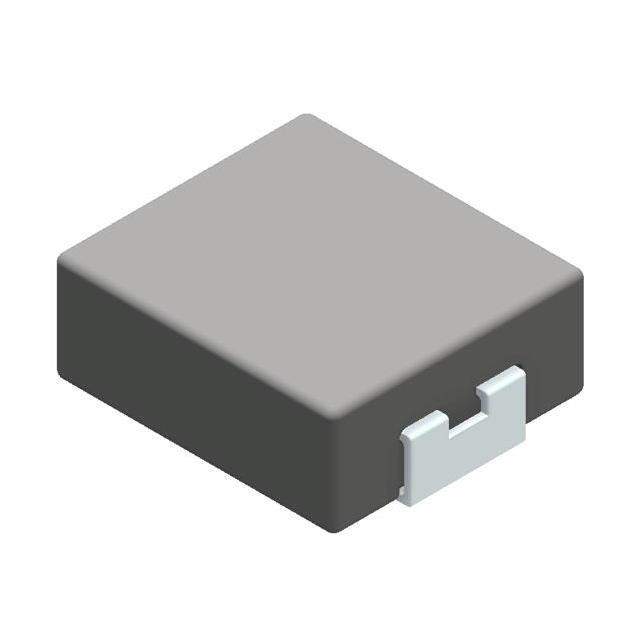

Same model may have multiple batches, images only for reference.

TMPC 0515HP-1R0MG-D

Name: TMPC 0515HP-1R0MG-D
Brand: TAI-TECH Advanced Electronics
SKU: 1383672
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TMPC 0515HP-1R0MG-D
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Fixed Inductors
Description	1.0 UH SHIELDED MOLDED INDUCTOR / 1 µH Unshielded Inductor 6 A 99mOhm Max Nonstandard
Datasheet	TMPC 0515HP-1R0MG-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TAI-TECH Advanced Electronics
Series	TMPC0515HP-D
Package	Tape & Reel (TR)
Type	-
Material - Core	Carbonyl Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	6 A
Current - Saturation (Isat)	9A
Shielding	Unshielded
DC Resistance (DCR)	99mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max)	0.059" (1.50mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
Standard Package	3,500 pcs
Win Source Part Number	1383672-TMPC 0515HP-1R0MG-D
Ultra Librarian 3D Model	Ultra Librarian TMPC 0515HP-1R0MG-D CAD Model

Alternative Products

Description

The TMPC0515HP-D series inductor, with Win Source Part Number 1383672-TMPC 0515HP-1R0MG-D, is a fixed inductor designed for high-performance applications.

Size: 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height: 0.059" (1.50mm)
Inductance: 1μH
Tolerance: ±20%
Mounting Type: Surface Mountable
Operating Temperature: -40°C to 125°C
Manufacturer: TAI-TECH Advanced Electronics
REACH: Unaffected
Package: 3,500 pcs
