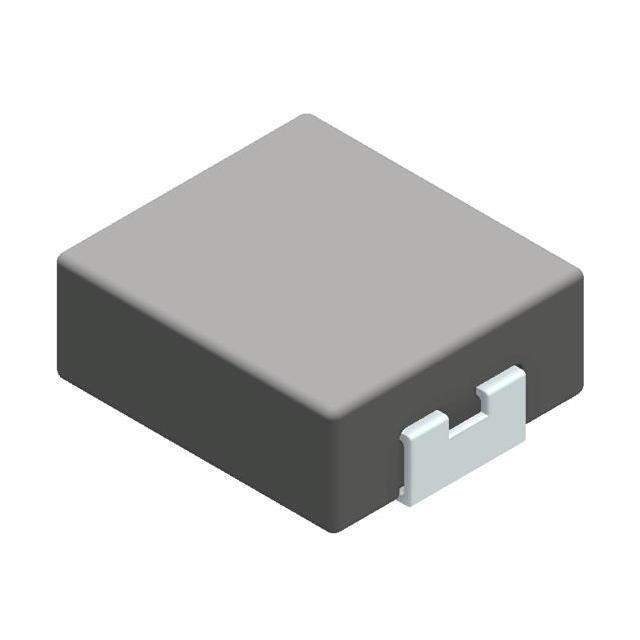

Same model may have multiple batches, images only for reference.

TMPC 0603H-3R3MG-D

Name: TMPC 0603H-3R3MG-D
Brand: TAI-TECH Advanced Electronics
SKU: 1383675
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TMPC 0603H-3R3MG-D
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Fixed Inductors
Description	3.3 UH SHIELDED MOLDED INDUCTOR / 3.3 µH Unshielded Molded Inductor 6 A 30mOhm Max Nonstandard
Datasheet	TMPC 0603H-3R3MG-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TAI-TECH Advanced Electronics
Series	TMPC0603H
Package	Tape & Reel
Type	Molded
Material - Core	Carbonyl Powder
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	6 A
Current - Saturation (Isat)	13.5A
Shielding	Unshielded
DC Resistance (DCR)	30mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
Standard Package	1,000 pcs
Win Source Part Number	1383675-TMPC 0603H-3R3MG-D
Ultra Librarian 3D Model	Ultra Librarian TMPC 0603H-3R3MG-D CAD Model

Alternative Products

Description

The 1383675-TMPC 0603H-3R3MG-D is a molded fixed inductor from TAI-TECH Advanced Electronics.

Series: TMPC0603H
Inductance: 3.3µH
Length: 0.287 inches (7.30mm)
Width: 0.260 inches (6.60mm)
Seated Height: 0.118 inches (3.00mm)
Tolerance: ±20%
Shielded: Unshielded
Core Material: Carbonyl Powder
DC Resistance: 30mOhm
Current Rating: 6A
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mountable
Package: Nonstandard
ECCN: EAR99
MSL Level: 1 (Unlimited)
Standard Package: 1,000 pcs
