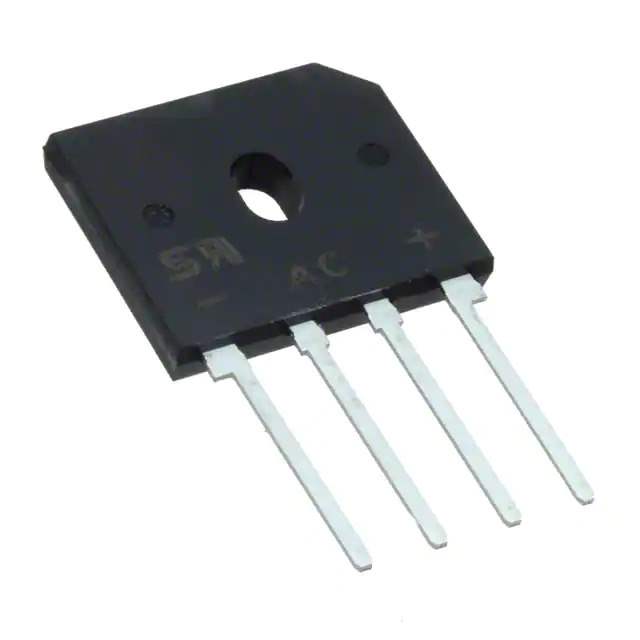

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU407
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594335-GBU407
Ultra Librarian 3D Model Ultra Librarian GBU407 CAD Model

Description

The 594335-GBU407 is a bridge rectifier diode from Taiwan Semiconductor.

  • Device Type: Through-hole
  • Package: 4-SIP, GBU
  • Voltage Rating: 1kV
  • Average Rectified Current: 4A
  • Forward Voltage: 1V @ 1.5A
  • Reverse Leakage Current: 5μA @ 1000V
  • Application: Suitable for use in various electronic circuits and applications
  • Operating Temperature Range: -55°C to 150°C
  • Performance: High-performance diode
  • Benefit: Provides efficient rectification and reliable operation in electronic devices
