Same model may have multiple batches, images only for reference.

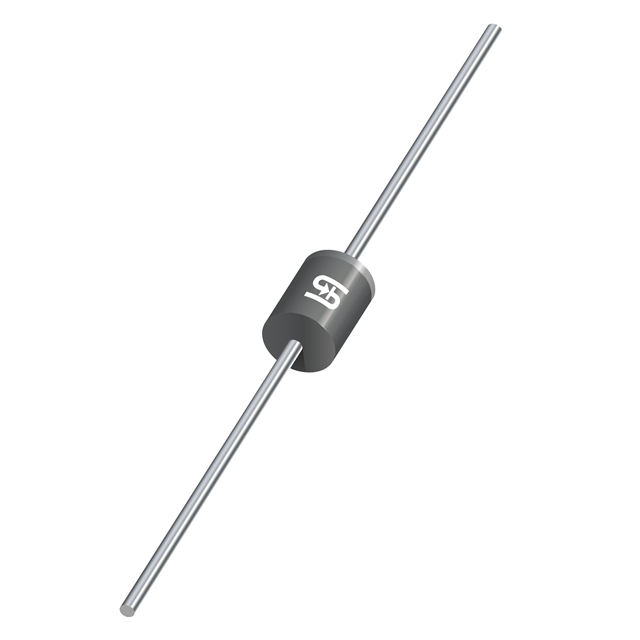

SR1503 B0G Real Image
Same model may have multiple batches, images only for reference.

SR1503 B0G

Part No SR1503 B0G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 15A R-6  /  Diode Schottky 30 V 15A Through Hole R-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 30 V
Mounting Type Through Hole
Package / Case R-6, Axial
Supplier Device Package R-6
Operating Temperature - Junction -50°C ~ 150°C
Base Product Number SR1503
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SR1503B0G,SR1503 B0G-ND
Standard Package 400
Win Source Part Number 1002226-SR1503 B0G
Ultra Librarian 3D Model Ultra Librarian SR1503 B0G CAD Model

Description

The SR1503 B0G is a high-quality electronic component manufactured by Taiwan Semiconductor Corporation.

  • Voltage Rating: 30 V
  • Current Rating: 15A
  • Forward Voltage: 550 mV @ 15 A
  • Reverse Leakage Current: 500 µA @ 30 V
  • Junction Temperature Range: -50°C to 150°C
  • Mounting Type: Through-Hole
  • Package/Case: R-6, Axial
