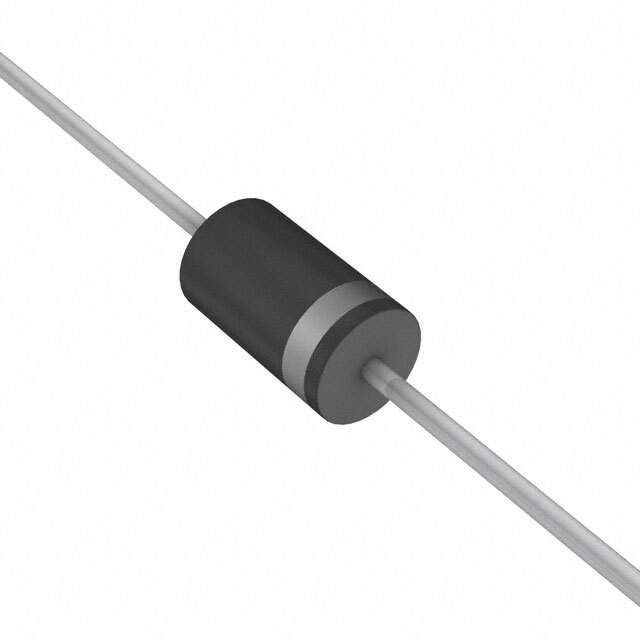

SR506 A0G Real Image
Same model may have multiple batches, images only for reference.

SR506 A0G

Part No SR506 A0G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, SCHOTTKY, STANDARD, 5A, 6
Datasheet
SR506 A0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 700mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 60V
Mounting Through Hole
Case / Package DO-201AD
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1101813-SR506 A0G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SR506 A0G CAD Model

Description

SR506 A0G is a Schottky diode from Taiwan Semiconductor.

  • DC Reverse Voltage (Max): 60V
  • Average Rectified Current: 5A
  • Forward Voltage: 700mV @ 5A
  • Reverse Leakage Current: 500μA @ 60V
  • Capacitance: 0F
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Through-Hole
  • Case/Package: DO-201AD
  • Recovery Speed: Fast (200mA Io)
