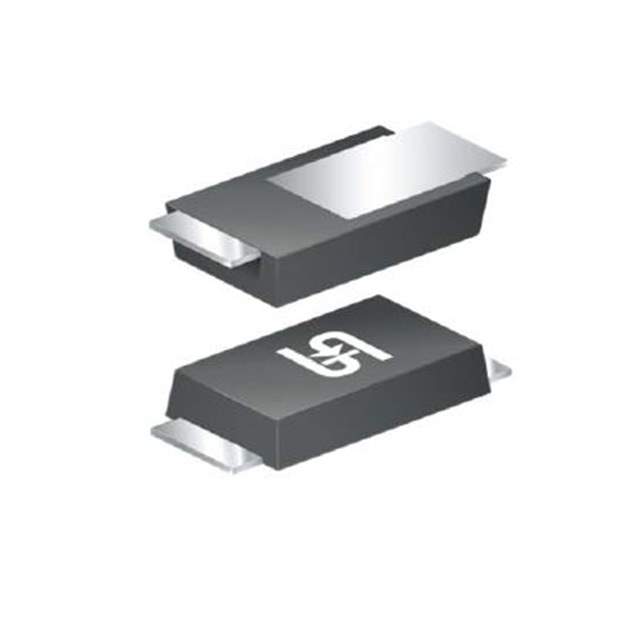

SS13LSHRVG Real Image
Same model may have multiple batches, images only for reference.

SS13LSHRVG

Part No SS13LSHRVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, SCHOTTKY, STANDARD, 1A, 3
Datasheet
SS13LSHRVG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 400μA @ 30V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123HE
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 1102042-SS13LSHRVG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SS13LSHRVG CAD Model

Description

The Taiwan Semiconductor SS13LSHRVG is a Schottky diode.

  • Type: Discrete Semiconductor Product
  • Case/Package: SOD-123HE
  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 1A
  • Forward Voltage @ 1A: 500mV
  • Reverse Leakage Current @ 30V: 400μA
  • Capacitance @ 4V, 1MHz: 80pF
  • Speed (Frequency): Fast Recovery = 200mA (Io)
  • Supply and Demand: Sufficient
