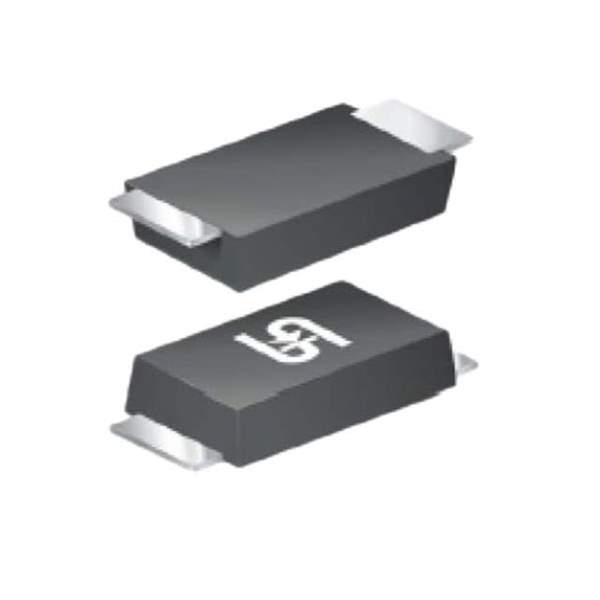

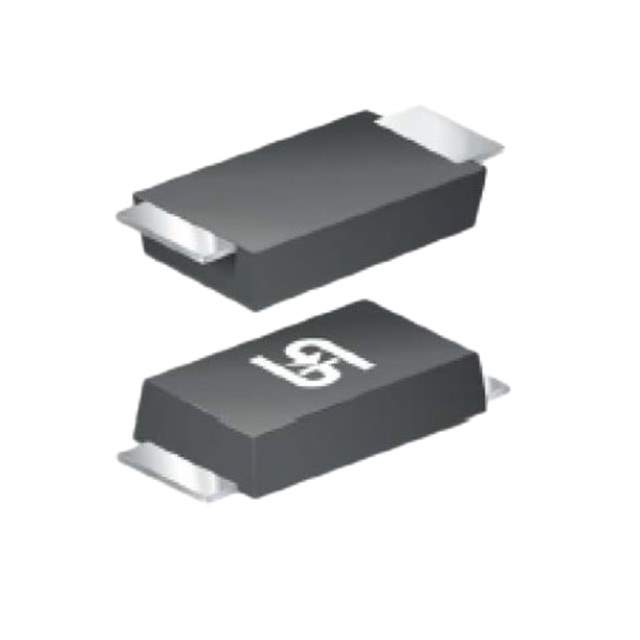

The SS310LWHRVG is a surface mount Schottky Barrier Rectifier designed for use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. This device offers a low forward voltage drop which translates to higher efficiency, reduced power loss, and improved thermal performance. Encased in a compact, low-profile SMB package, it suits high-density board layouts and automated assembly.

Applications

• High-frequency switching power supplies
• Freewheeling diode applications
• DC/DC converters
• Reverse polarity protection circuits
• Portable devices

Features

• Low forward voltage drop: Minimizes power dissipation and improves efficiency.
• High surge current capability: Provides protection against transient voltage spikes.
• Surface mount SMB package: Facilitates automated assembly and minimizes board space.
• High-temperature operation: Ensures reliability in demanding thermal environments.
• Halogen-free and RoHS compliant: Adheres to environmental standards.

Benefits

• Increased Power Efficiency: The low forward voltage drop reduces power losses, resulting in higher energy conversion efficiency.
• Enhanced System Reliability: Its robust surge current capability protects against over-voltage conditions and improves overall system robustness.
• Smaller Footprint: The compact SMB package enables high-density circuit layouts, freeing up valuable board space.
• Simplified Manufacturing: The surface mount design streamlines assembly processes and reduces production costs.
• Environmentally Friendly: Halogen-free and RoHS compliance ensures adherence to environmental regulations and promotes sustainability.

Additional Details

The SS310LWHRVG has a maximum repetitive peak reverse voltage of 100V and a maximum average forward current of 3A. The typical forward voltage is 0.5V at 3A. It features a reverse leakage current of less than 5 μA at rated voltage. The operating temperature range is typically -55°C to +150°C. The device utilizes a molded plastic SMB package with a low profile. This Schottky diode is ideal for improving efficiency and reliability in a variety of power electronics applications.
