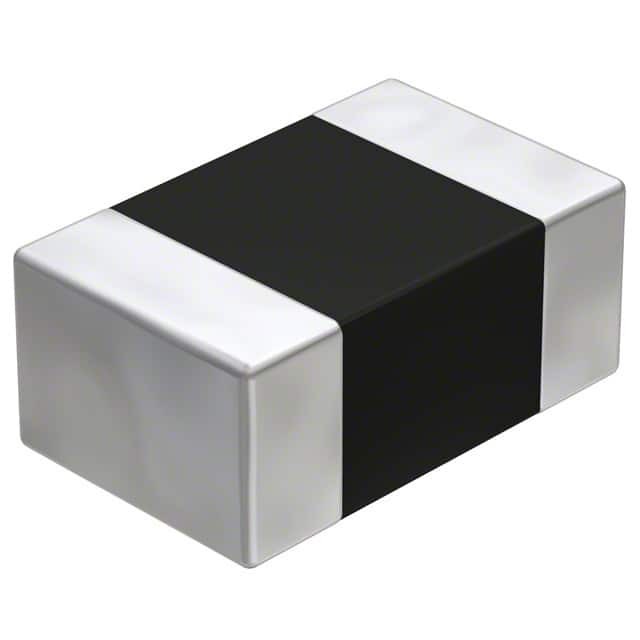

Same model may have multiple batches, images only for reference.
AH212M245001-T
Same model may have multiple batches, images only for reference.

AH212M245001-T

Part No AH212M245001-T
Manufacturer Taiyo Yuden
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
Datasheet
AH212M245001-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Taiyo Yuden
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 3
Gain 0.9dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.033" (0.85mm)
Applications Bluetooth, WLAN, Zigbee™
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 852706-AH212M245001-T
Ultra Librarian 3D Model Ultra Librarian AH212M245001-T CAD Model

Description

The 852706-AH212M245001-T is a chip antenna from Taiyo Yuden.

  • Applications: Bluetooth, WLAN, and Zigbee™
  • Frequency Range: 2.4GHz to 2.5GHz
  • Frequency Group: UHF (2GHz to 3GHz)
  • Gain: 0.9dBi
  • VSWR: 3
  • Mounting Type: solder termination
  • Package Quantity: tape and reel package of 4,000 pcs
  • Height: 0.033" (0.85mm)
  • ECCN: EAR99 compliant
  • Design Status: not for new designs
