Same model may have multiple batches, images only for reference.

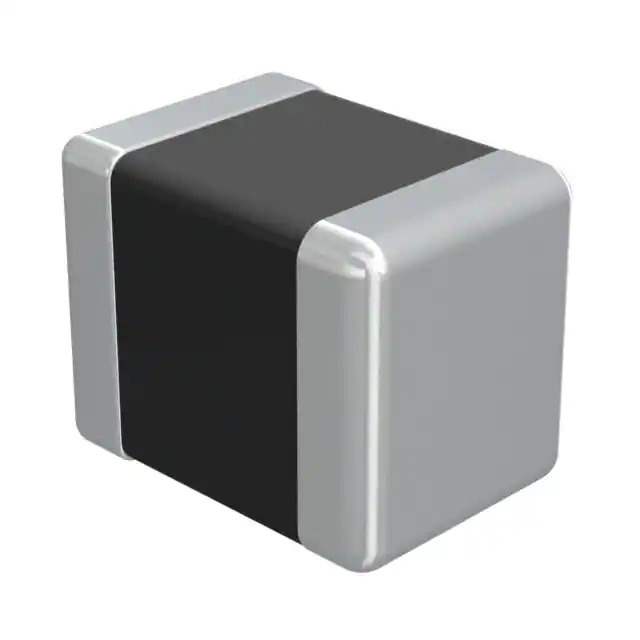

CB2518T220M Real Image
Same model may have multiple batches, images only for reference.

CB2518T220M

Part No CB2518T220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 580MA 650MOHM SMD / 22 μH Unshielded Drum Core, Wirewound Inductor 580 mA 650mOhm Max 1007 (2518 Metric)
Datasheet
CB2518T220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series CB
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 580 mA
Current - Saturation (Isat) 165mA
Shielding Unshielded
DC Resistance (DCR) 650mOhm Max
Frequency - Self Resonant 19MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Surface Mount
Package / Case 1007 (2518 Metric)
Supplier Device Package 1007 (2518 Metric)
Size / Dimension 0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 865862-CB2518T220M
Ultra Librarian 3D Model Ultra Librarian CB2518T220M CAD Model

Description

The Taiyo Yuden 865862-CB2518T220M is a surface mount fixed inductor.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Series: CB
  • Core Material: Drum Core
  • Type: Wirewound
  • Shielding: Unshielded
  • Size / Dimension: 0.098" L x 0.071" W (2.50mm x 1.80mm)
  • Inductance: 22µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 650mOhm Max
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2,000 Pieces
  • Operating Temperature: -40°C to 105°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.4000
  • Current Rating: 580mA
