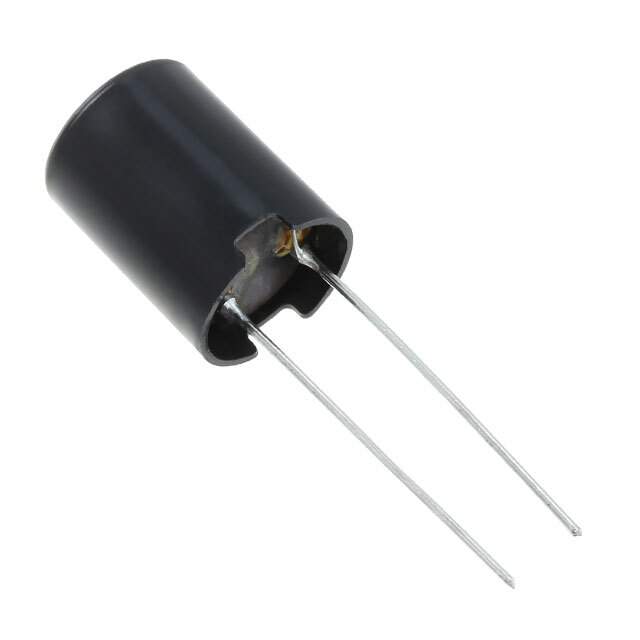

Same model may have multiple batches, images only for reference.

LHLC08TB1R0N

Name: LHLC08TB1R0N
Brand: Taiyo Yuden
SKU: 180329
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LHLC08TB1R0N
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 1UH 5.4A 13 MOHM TH
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Inductance	1μH
Tolerance	±30%
Current Rating	5.4A
DC Resistance (DCR)	13 mOhm Max
Q @ Freq	40 @ 76MHz
Frequency - Self Resonant	76MHz
Temperature Range - Operating	-25°C to 105°C
Frequency - Test	7.96MHz
Mounting	Through Hole
Height - Seated (Max)	0.374" (9.50mm)
Win Source Part Number	041053-LHLC08TB1R0N
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian LHLC08TB1R0N CAD Model

Alternative Products

Description

The Taiyo Yuden 041053-LHLC08TB1R0N wirewound inductor is a high-quality electronic component that is designed to provide efficient performance in a variety of applications. With a current rating of 5.4A and an inductance of 1μH, this inductor is ideal for use in a wide range of circuits.

Current Rating: 5.4A
Inductance: 1μH
Material: ferrite
Tolerance: ±30%
DC Resistance (DCR): 13 mOhm Max
Frequency of Self-Resonant: 76MHz
Mounting Type: through-hole
Height: 0.374" (9.50mm)
Temperature Range: -25°C to 105°C
Package Quantity: 1k pcs per package
Popularity: popular
Supply and Demand Status: limited
