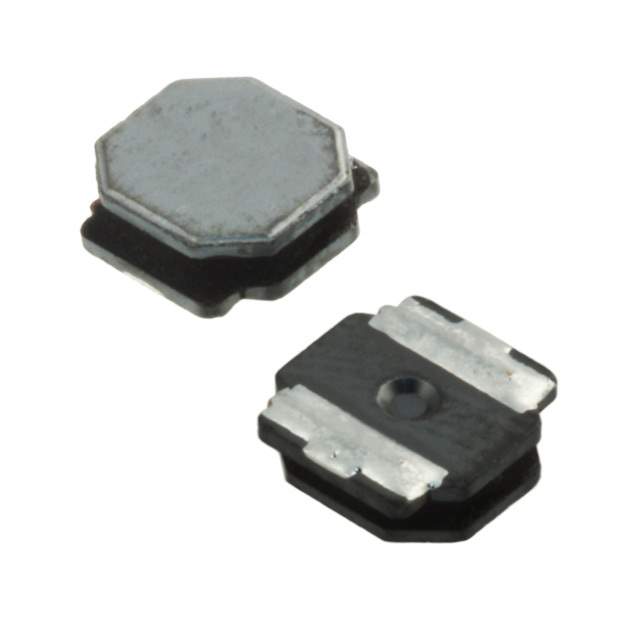

The LMNRS5020T100MMGJ is a shielded power inductor manufactured by Taiyo Yuden. It's designed for use in power supply circuits, DC-DC converters, and other applications requiring efficient energy storage and filtering.

Applications

• DC-DC Converters: Used as an energy storage element in buck, boost, and other DC-DC converter topologies.
• Power Supply Circuits: Employed in power supply circuits for filtering and smoothing voltage outputs.
• Portable Devices: Integrated into portable electronic devices for power management and filtering.
• LED Lighting: Utilized in LED lighting applications for regulating current and improving efficiency.
• Automotive Electronics: Incorporated into automotive electronic systems for power conversion and filtering.

Features

• Shielded Construction: Features a shielded construction to minimize electromagnetic interference (EMI).
• High Current Capability: Designed to handle high current levels without saturation.
• Low DC Resistance: Offers low DC resistance (DCR) for improved efficiency.
• Compact Size: Available in a small form factor for space-constrained applications.
• Wide Operating Temperature Range: Operates reliably over a wide temperature range.
• RoHS Compliant: Complies with RoHS standards for environmental protection.
• High Inductance Value: Provides an inductance of 10µH.

Benefits

• Reduced EMI: Shielded construction minimizes electromagnetic interference, improving system performance.
• Improved Efficiency: Low DC resistance reduces power losses, enhancing overall efficiency.
• Compact Design: Small size allows for easy integration into space-constrained applications.
• Reliable Operation: Wide operating temperature range ensures reliable performance in various environments.
• Environmental Compliance: RoHS compliance ensures environmental protection.
• High Saturation Current: High saturation current supports greater power throughput.

The LMNRS5020T100MMGJ is typically surface-mounted onto printed circuit boards (PCBs). Its inductance value of 10µH is suited to many power applications. Its shielded build significantly reduces any potential electromagnetic interference to nearby circuits, which is very important in sensitive application environments. The high current capabilities of this inductor ensure that it can efficiently handle the required power, leading to optimal function for longer and at a more reliable performance standard.
