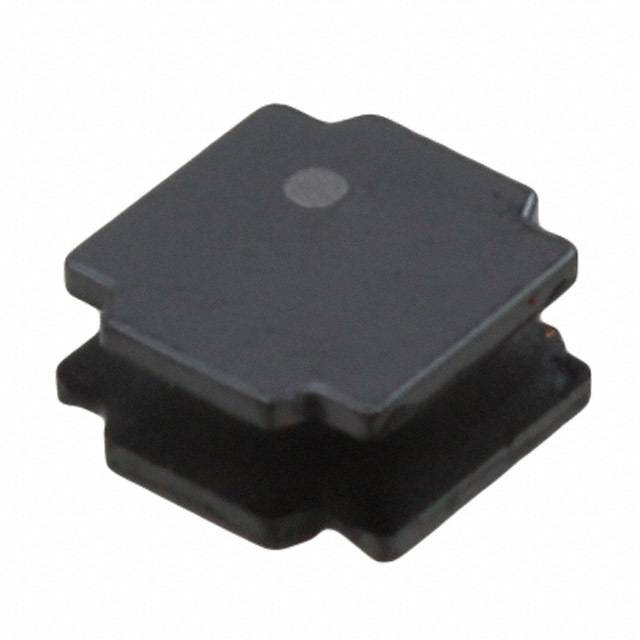

Same model may have multiple batches, images only for reference.

NR8040T3R6N

Name: NR8040T3R6N
Brand: Taiyo Yuden
SKU: 259334
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NR8040T3R6N
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 3.6UH 4.9A 19.5 MOHM
Datasheet	NR8040T3R6N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	3.6μH
Tolerance	±30%
Current Rating	4.9A
Current - Saturation	5.3A
DC Resistance (DCR)	19.5 mOhm Max
Frequency - Self Resonant	34MHz
Temperature Range - Operating	-25°C to 120°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.157" (4.00mm)
Win Source Part Number	004110-NR8040T3R6N
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian NR8040T3R6N CAD Model

Alternative Products

Description

The NR8040T3R6N is a wirewound type inductor manufactured by Taiyo Yuden.

Current Rating: 4.9A
Inductance: 3.6μH
Height Seated: 0.157" (4.00mm)
Mounting Technology: SMD (SMT)
Tolerance: ±30%
Core Material: Ferrite
Supply and Demand Status: Balanced
DC Resistance: 19.5 mOhm Max
Temperature Range: -25°C to 120°C
