Same model may have multiple batches, images only for reference.

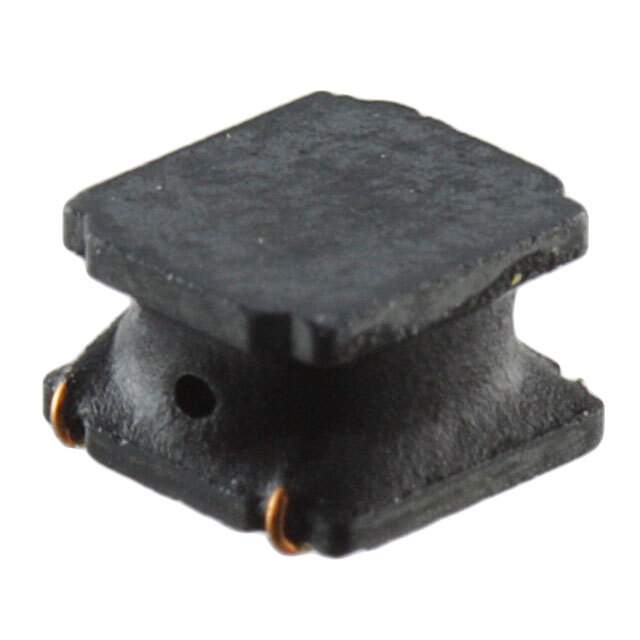

NRG4026T470M Real Image
Same model may have multiple batches, images only for reference.

NRG4026T470M

Part No NRG4026T470M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description SMD INDUCTORS LOW PROFILE TYPE
Datasheet
NRG4026T470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRG
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 650mA
Current - Saturation 410mA
Shielding Shielded
DC Resistance (DCR) 300 mOhm
Frequency - Self Resonant 6MHz
Operating Temperature Range -25°C ~ 120°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.102" (2.60mm)
Win Source Part Number 1232076-NRG4026T470M
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NRG4026T470M CAD Model

Description

The NRG4026T470M is a wirewound inductor manufactured by Taiyo Yuden.

  • Inductance: 47μH
  • Current Rating: 650mA
  • Temperature Range: -25°C to 120°C
