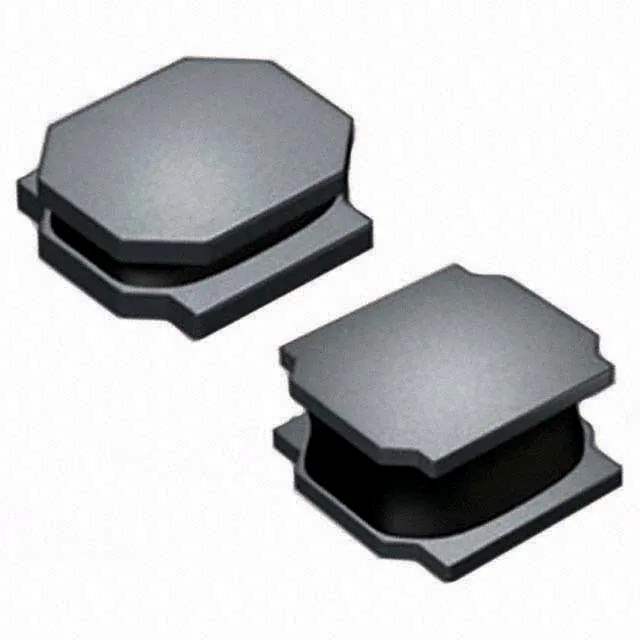

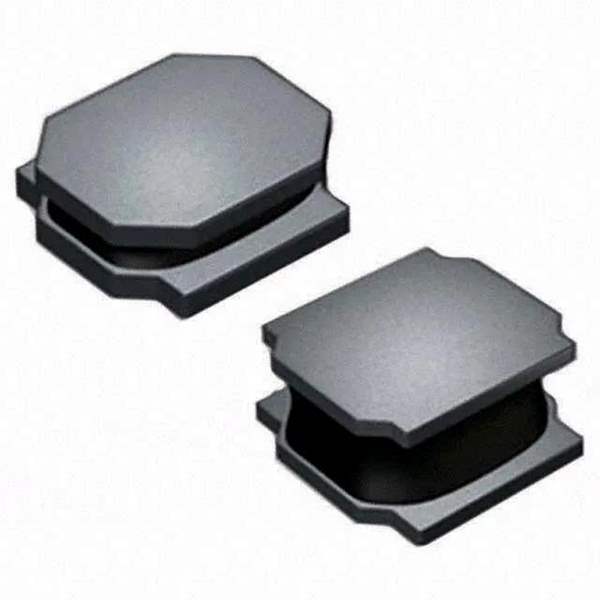

NRS4012T220MDGJ Real Image
Same model may have multiple batches, images only for reference.

NRS4012T220MDGJ

Part No NRS4012T220MDGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 620MA 480MOHM SMD
Datasheet
NRS4012T220MDGJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 620 mA
Current - Saturation (Isat) 500mA
Shielding Shielded
DC Resistance (DCR) 480mOhm Max
Frequency - Self Resonant 18MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 4,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 649416-NRS4012T220MDGJ
Ultra Librarian 3D Model Ultra Librarian NRS4012T220MDGJ CAD Model

Description

The 649416-NRS4012T220MDGJ is a drum core, wirewound inductor from Taiyo Yuden's NR, S Type series.

  • Type: Shielded Inductor
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 22 µH
  • Maximum Seated Height: 0.047" (1.20mm)
  • DC Resistance (DCR): 480mOhm Max
  • Operating Temperature: -25°C to 120°C
  • Current Rating: 620 mA
  • Saturation Current: 500mA
  • Packaging: Tape & Reel
  • Package: Nonstandard
  • Recommendation: Not recommended for new designs
