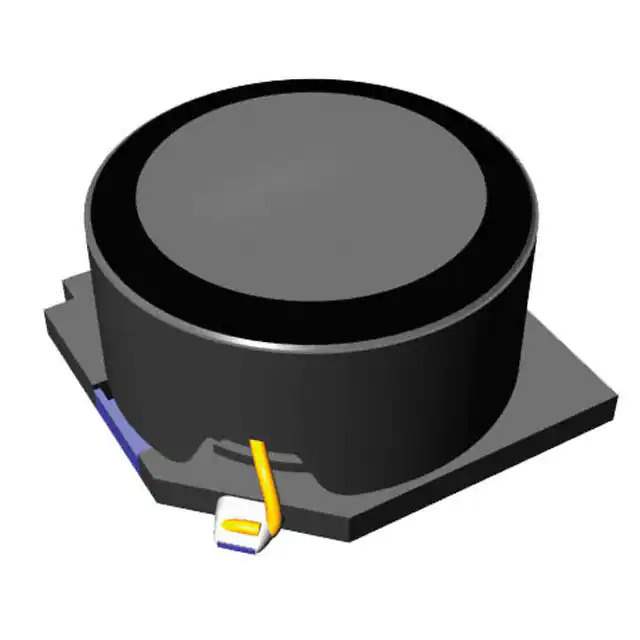

NS12565T221MN Real Image
Same model may have multiple batches, images only for reference.

NS12565T221MN

Part No NS12565T221MN
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 220UH 1.18A 327.6 MOHM
Datasheet
NS12565T221MN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NS
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 1.18 A
Current - Saturation (Isat) 1.39A
Shielding Shielded
DC Resistance (DCR) 327.6mOhm Max
Frequency - Self Resonant 3.6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.270" (6.85mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 649517-NS12565T221MN
Ultra Librarian 3D Model Ultra Librarian NS12565T221MN CAD Model

Description

The 649517-NS12565T221MN is a drum core, wirewound inductor from Taiyo Yuden's NS series.

  • Type: shielded inductor
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 220 µH
  • Seated Height: 0.270" (6.85mm)
  • Tolerance: ±20%
  • Mounting: surface mount
  • Package: nonstandard
  • DC Resistance (DCR): 327.6mOhm max
  • Operating Temperature: -40°C to 125°C
  • Status: not for new designs
  • Current Rating: 1.18 A
  • Core Material: ferrite
  • Self-Resonant Frequency: 3.6MHz
