Same model may have multiple batches, images only for reference.

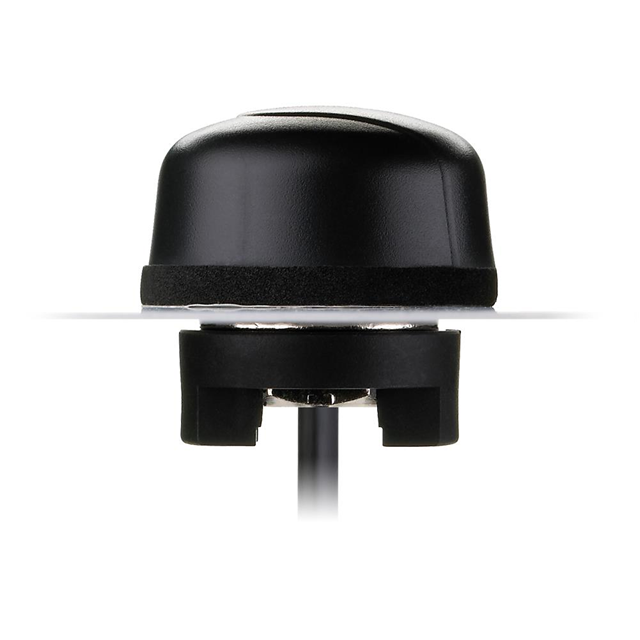

IS.04.B.301111 Real Image
Same model may have multiple batches, images only for reference.

IS.04.B.301111

Part No IS.04.B.301111
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 869MHZ DOME SMA MALE PAN  /  869MHz Dome RF Antenna 868MHz ~ 870MHz 2.09dBi SMA Male Panel Mount
Datasheet
IS.04.B.301111 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Bulk
Frequency Group UHF (300MHz ~ 1GHz)
Frequency (Center/Band) 869MHz
Frequency Range 868MHz ~ 870MHz
Antenna Type Dome
Number of Bands 1
VSWR 2.5
Return Loss -21.93dB
Gain 2.09dBi
Power - Max 10 W
Termination SMA Male
Ingress Protection IP69K
Mounting Type Panel Mount
Height (Max) 1.142" (29.00mm)
Base Product Number IS.04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names IS04B301111,931-1112
Standard Package 10
Win Source Part Number 1185036-IS.04.B.301111
Ultra Librarian 3D Model Ultra Librarian IS.04.B.301111 CAD Model

Description

This RF Antenna is a high-performance antenna that is designed to operate in the frequency range of 868MHz to 870MHz.

  • Connector: SMA Male
  • VSWR: 2.5
  • Gain: 2.09dBi
  • Package: Bulk
  • Ingress Protection: IP69K
  • Frequency Group: UHF (300MHz ~ 1GHz)
  • Frequency (Center/Band): 869MHz
  • Maximum Power: 10W
  • Return Loss: -21.93dB
  • Mounting: Panel Mount
  • Manufacturer: Taoglas Limited
  • Standard Package: 10
  • ECCN: EAR99
  • REACH: Unaffected
