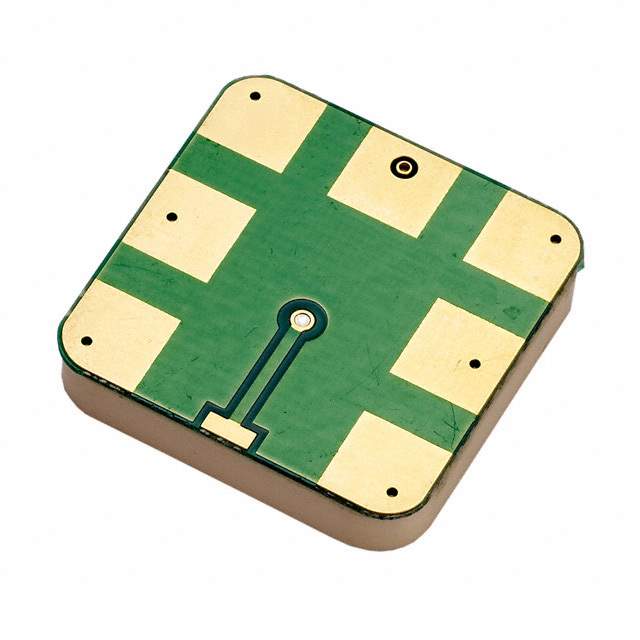

SGP.1575.25.4.C.02 Real Image
Same model may have multiple batches, images only for reference.

SGP.1575.25.4.C.02

Part No SGP.1575.25.4.C.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575GHZ CER PATCH SLD / 1.575GHz GPS Ceramic Patch RF Antenna 1.571GHz ~ 1.579GHz 2dBic Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.571GHz ~ 1.579GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Gain 2dBic
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Applications GPS
Other Names SGP1575254C02,931-1017-6,SGP.25C,Q7633864,931-1017-2,931-1017-1
Standard Package 200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Win Source Part Number 1236179-SGP.1575.25.4.C.02
Ultra Librarian 3D Model Ultra Librarian SGP.1575.25.4.C.02 CAD Model

Description

This ceramic patch antenna is a high-performance RF antenna suitable for GPS applications.

  • Frequency Range: 1.571GHz to 1.579GHz
  • Gain: 2dBic
  • Application: navigation systems
  • Mounting Type: SMD (SMT)
  • VSWR: 1.5
  • Height (Max): 0.177" (4.50mm)
  • Packaging: tape & reel
  • Navigation RF family/standard: Navigation RF
  • ECCN: 7A994
  • Status: obsolete
  • Standard Package: 200
