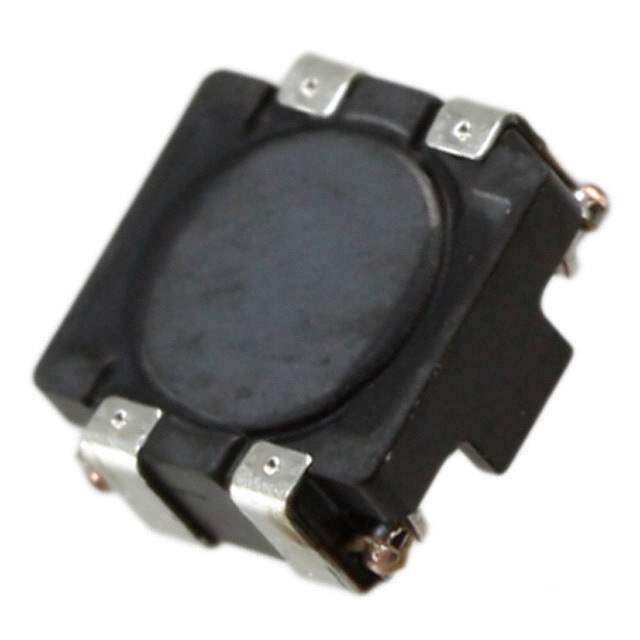

ACM4520-142-2P-T000 Real Image
Same model may have multiple batches, images only for reference.

ACM4520-142-2P-T000

Part No ACM4520-142-2P-T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.7A 2LN 1.4 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 1.4 kOhm @ 100MHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 80 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007856-ACM4520-142-2P-T000
Family Name ACM
Introduction Date July 04, 2001
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian ACM4520-142-2P-T000 CAD Model

Description

The ACM4520-142-2P-T000 is a highly efficient electronic component ideal for various electromagnetic applications. This component features low DC resistance and excellent current handling capabilities, making it suitable for high-frequency scenarios.

Features and Benefits

  • Compact size for easy integration
  • High impedance characteristics
  • Optimized for noise suppression
  • Reliable performance with durable construction

Applications and Projects

  • Telecommunication devices
  • Consumer electronics
  • Automotive electronics
  • Power supply circuits

With its robust design and wide application usage, the ACM4520-142-2P-T000 stands out as a versatile choice for industry professionals.
