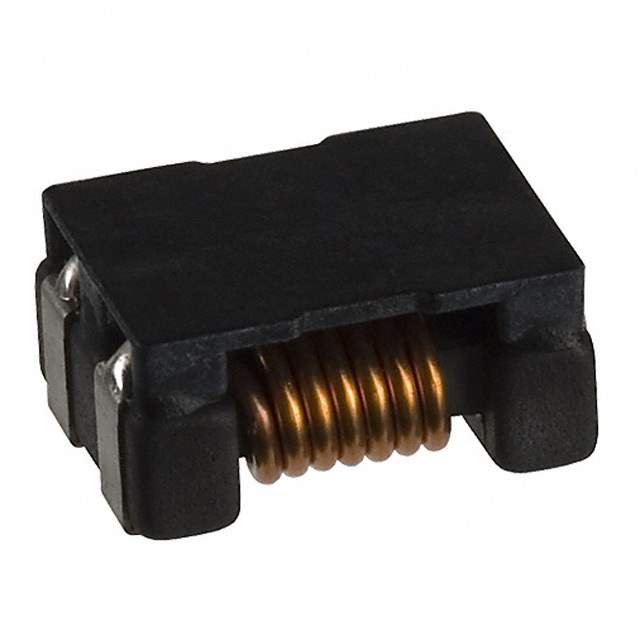

ACM90V-701-2PL-TL Real Image
Same model may have multiple batches, images only for reference.

ACM90V-701-2PL-TL

Part No ACM90V-701-2PL-TL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 5A 2LN 700 OHM SMD AEC-Q200
Datasheet
ACM90V-701-2PL-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 10 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 J-Lead
Win Source Part Number 090224-ACM90V-701-2PL-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM90V-701-2PL-TL CAD Model

Description

Product Overview

The ACM90V-701-2PL-TL offers exceptional efficiency and versatility, suitable for a diverse range of technological environments. It's engineered for superior precision and longevity.

Applications

  • Consumer electronics
  • Renewable energy systems
  • Robotics
  • Aerospace technology

Features and Benefits

  • High efficiency leading to cost savings
  • Flexible use in multiple applications
  • Strong operational stability
  • Reduced maintenance requirements

The ACM90V-701-2PL-TL is designed to deliver exceptional performance, maximizing your project’s potential.
