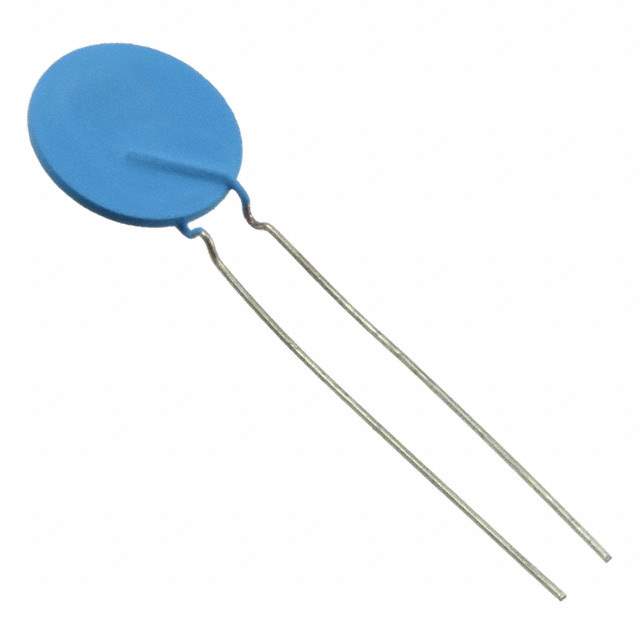

B59945C160A70 Real Image
Same model may have multiple batches, images only for reference.

B59945C160A70

Part No B59945C160A70
Manufacturer TDK Corporation
Catalog PTC Resettable Fuses
Description Thermistor PTC 0.45Ohm 25% 2-Pin Radial Cardboard Strip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Hold Current 1.5 A
Max Current Rating 8 A
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 2
Operating Supply Voltage 20 V
Packaging Bulk
Radiation Hardening No
Resistance 450 mΩ
RoHS Compliant
Trip Current 3.05 A
Win Source Part Number 1047839-B59945C160A70
Categories PTC Resettable Fuses
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B59945C160A70 CAD Model

Description

The B59945C160A70 is a PTC resettable fuse with a resistance of 450 mΩ and a hold current of 1.5 A.

  • Resistance: 450 mΩ
  • Hold Current: 1.5 A
  • Trip Current: 3.05 A
  • Maximum Operating Temperature: 125 °C
  • Mounting Type: Through Hole
  • RoHS Compliant: Yes
  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1047839-B59945C160A70
