Same model may have multiple batches, images only for reference.

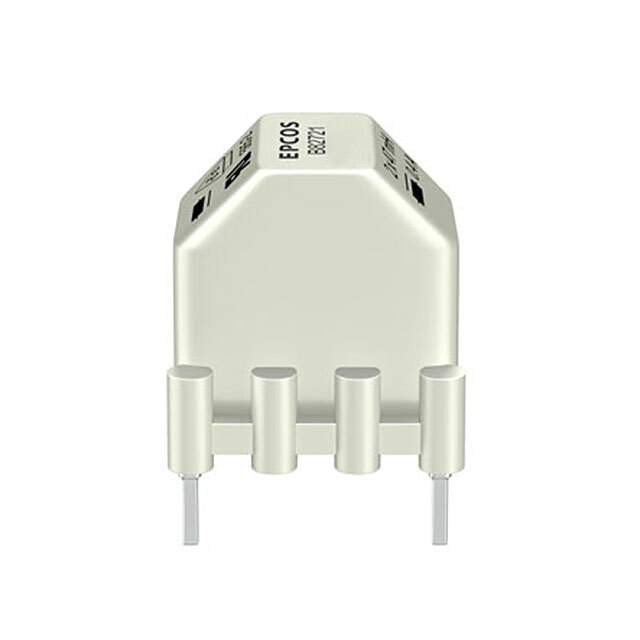

B82721K2401N21 Real Image
Same model may have multiple batches, images only for reference.

B82721K2401N21

Part No B82721K2401N21
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Ind Common Mode Choke 27mH 400mA 1.7Ohm 30% 4-Pin Radial Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Radial
Current 400 mA
Current Rating 400 mA
DC Resistance (DCR) 1.7 Ω
Height 20.9042 mm
Inductance 27 mH
Lead Free Lead Free
Length 18.2118 mm
Max DC Current 400 mA
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Lines 2
RoHS Compliant
Series Resistance 1.7 Ω
Shielding Unshielded
Termination Radial
Tolerance 30 %
Weight 5.000005 g
Width 13.2 mm
Win Source Part Number 1180820-B82721K2401N21
Categories Common Mode Chokes
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82721K2401N21 CAD Model

Description

The TDK Corporation B82721K2401N21 is a common mode choke with a radial termination.

  • Current Rating: 400 mA
  • Inductance: 27 mH
  • Tolerance: 30 %
  • DC Resistance (DCR): 1.7 Ω
  • Series Resistance: 1.7 Ω
  • Lead-Free: Yes
  • RoHS Compliance: Yes
