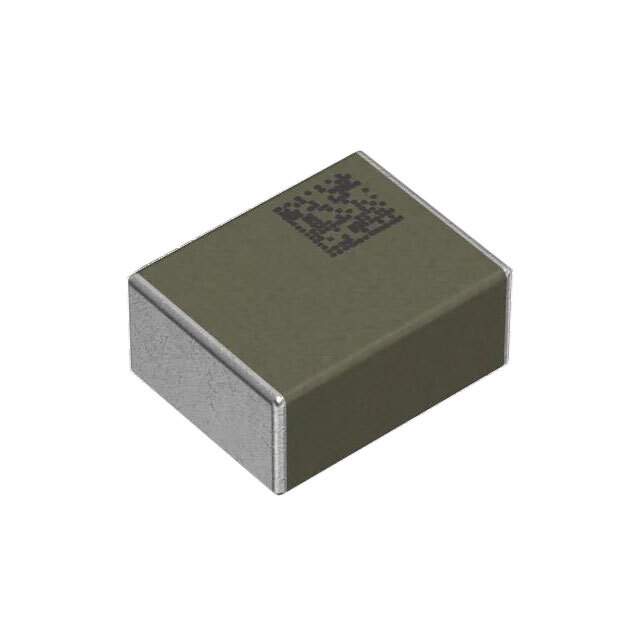

The BCL series fixed inductors by TDK Corporation are a perfect solution for various applications.

• Model: BCL322515RT-150M-D
• Core: Drum core, wirewound
• Package: Tape and reel
• Shielded: Yes
• Inductance: 15 micro Henry
• Height Seated (max): 0.059 inches (1.50mm)
• Standard Package: 2,000
• Mounting: SMD (SMT)
• Tolerance: +/-20%
• AEC-Q200: Yes
• Core Material: Metal
• DC Resistance (DCR): 480mOhm Max
• Supplier Device Package: 1210
• Temperature Range: -55 degrees Celsius to 155 degrees Celsius
• Dimension: 0.126 inches L x 0.098 inches W (3.20mm x 2.50mm)
• Alternative part to: STP11NK40Z, STP19NM50N, STP18NM60N, FQP14N15, FDP12N60NZ, FQP13N50TK12E60WS1VX(S) and TK12E60WS1VXS
