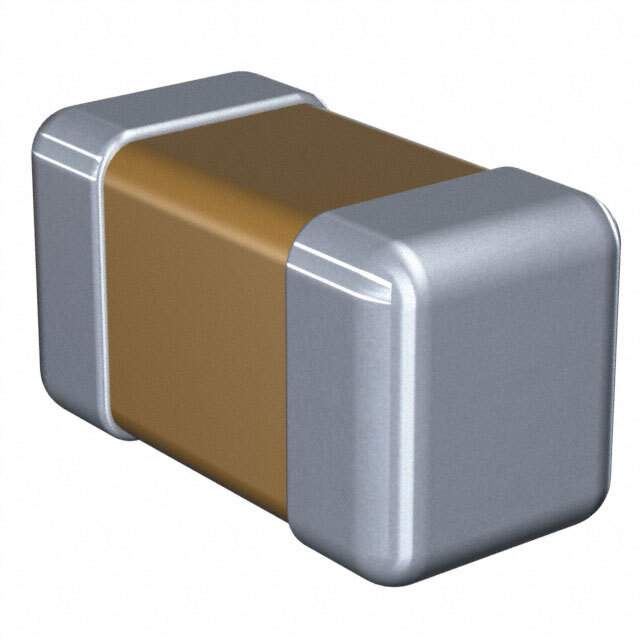

The C0603C0G1H150JT00NN is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is characterized by its high stability and low loss, making it suitable for various precision applications.

Applications:

• RF Circuits: Used in radio frequency circuits where low losses and high stability are required.
• Timing Circuits: Employed in timing circuits where precise capacitance values are critical.
• Oscillators: Utilized in oscillator circuits for stable frequency generation.
• Filtering: Used in filtering circuits to pass or reject specific frequency ranges with minimal signal degradation.
• High-Frequency Applications: Suitable for high-frequency circuits due to its low equivalent series resistance (ESR).
• Medical Devices: Used in medical equipment requiring high reliability and precision.
• Test and Measurement Equipment: Employed in test and measurement instruments where accuracy is paramount.

Features:

• Capacitance: 15pF capacitance value.
• Voltage Rating: 50V DC voltage rating.
• Temperature Characteristic: C0G (NP0) dielectric, offering ultra-stable performance with minimal capacitance change over temperature.
• Case Size: 0603 (1608 Metric) case size.
• Termination: Nickel barrier termination for excellent solderability and prevention of silver migration.
• RoHS Compliant: Compliant with RoHS directives.
• SMD (Surface Mount Device): Designed for surface mount technology assembly, facilitating automated placement.

Benefits:

• Ultra-Stable Performance: The C0G dielectric ensures minimal capacitance change over a wide temperature range and voltage variations.
• Low Loss: Exhibits low equivalent series resistance (ESR), minimizing signal loss in high-frequency applications.
• High Reliability: Manufactured using high-quality materials and processes for consistent performance.
• Space Saving: The compact 0603 case size allows for high-density circuit design.
• Easy Assembly: SMD design simplifies the assembly process and reduces manufacturing costs.
• Suitable for Precision Applications: Ideal for applications requiring stable and accurate capacitance values.
• Environmentally Friendly: RoHS compliance minimizes environmental impact.

Additional Details:

The C0603C0G1H150JT00NN capacitor uses a ceramic dielectric material specifically formulated to provide exceptional stability and low loss characteristics. The C0G (NP0) dielectric exhibits a capacitance change of approximately 0 ±30 ppm/°C over the operating temperature range. The termination material is typically a nickel barrier with a solder plating, providing excellent solderability and preventing silver migration, which can cause shorts in humid environments. It is designed for reflow soldering processes and should be handled according to standard SMD assembly guidelines. This capacitor is commonly used in RF circuits, timing applications, and other precision applications where stable and low-loss performance is critical. It is supplied on tape and reel for automated pick-and-place assembly.
