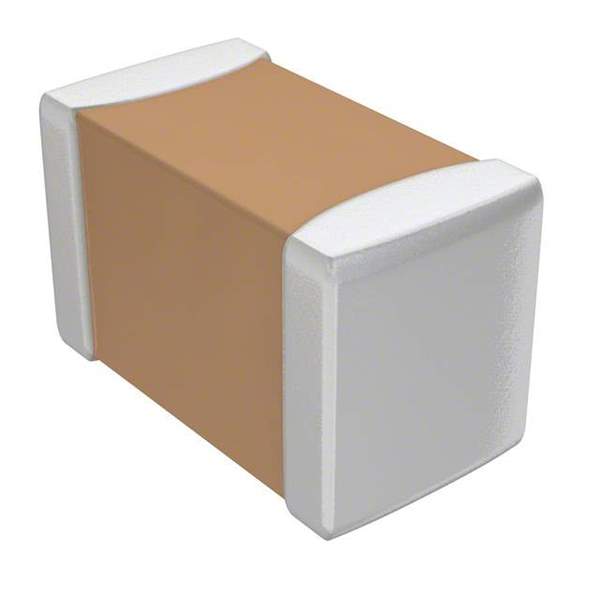

The C1608X5R1E106MT000E is a multilayer ceramic capacitor (MLCC) from TDK Corporation. These capacitors are widely used in electronic circuits for various applications, including decoupling, bypass, and filtering.

Applications:

• Decoupling in power supplies: Provides stable voltage by suppressing voltage ripples.
• Bypass capacitors in digital circuits: Filters out high-frequency noise.
• Filtering in signal processing circuits: Reduces unwanted frequencies in electronic signals.
• Consumer electronics: Used in smartphones, tablets, and laptops.
• Automotive electronics: Employed in various control units and systems.

Features:

• High Capacitance: Offers a capacitance value of 10µF.
• Compact Size: The 1608 (0603) case size makes it suitable for high-density circuit boards.
• X5R Dielectric: Provides stable performance over a temperature range of -55°C to +85°C.
• Multilayer Construction: Enhances capacitance per unit volume.
• RoHS Compliant: Meets environmental standards for hazardous substance control.

Benefits:

• Improved Circuit Stability: Reduces noise and voltage fluctuations for reliable operation.
• Space Saving: The small size allows for compact circuit designs.
• Consistent Performance: The X5R dielectric ensures stable capacitance over a wide temperature range.
• Long Lifespan: Ceramic capacitors offer high reliability and long operational life.
• Environmental Compliance: RoHS compliance ensures adherence to environmental regulations.

Technical Specifications:

Capacitance: 10 µF

Voltage Rating: 25 V

Dielectric: X5R

Case Size: 1608 (0603 Metric)

Tolerance: ±20%

Temperature Coefficient: ±15%

Operating Temperature Range: -55°C to +85°C

Termination: Nickel Barrier with Tin Plating
