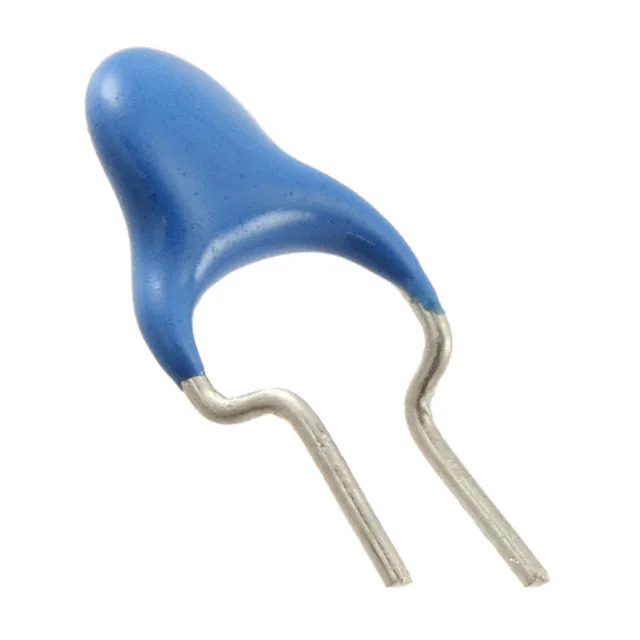

Same model may have multiple batches, images only for reference.
CC45SL3AD221JYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3AD221JYVNA

Part No CC45SL3AD221JYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 220PF 1KV SL RADIAL / 220 pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Product Status Active
Capacitance 220 pF
Tolerance ±5%
Voltage - Rated 1000V (1kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.335" Dia (8.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359987-CC45SL3AD221JYVNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3AD221JYVNA CAD Model

Description

The TDK Corporation CC45 series capacitors are high voltage ceramic capacitors designed for general-purpose applications. Bold the product name (e.g., BAV99S,135 → CC45SL3AD221JYVNA and manufacturer (e.g., Nexperia USA Inc. → TDK Corporation.

  • Capacitance: 220 pF
  • Voltage - Rated: 1000V
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Size: 0.335" diameter
  • Height: 0.492"
  • Operating Temperature: -25°C to 125°C
  • Capacitance Tolerance: ±5%
  • Manufacturer: TDK Corporation
  • Series: CC45
