Same model may have multiple batches, images only for reference.

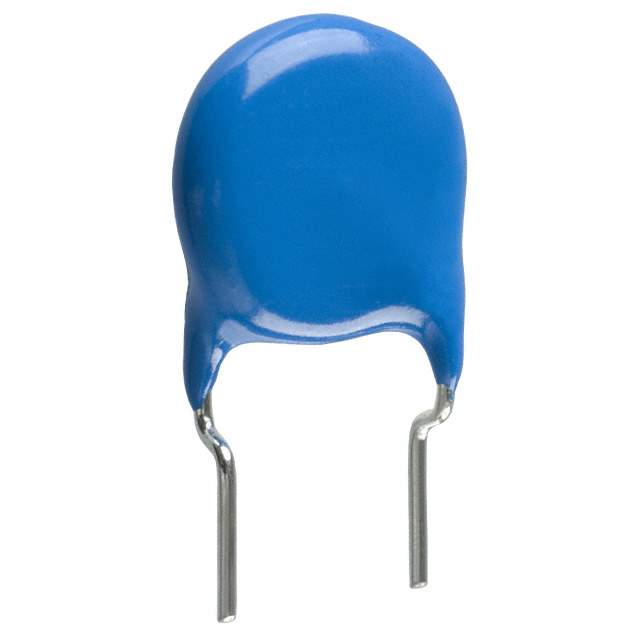

CC45SL3AD471JYNNA Real Image
Same model may have multiple batches, images only for reference.

CC45SL3AD471JYNNA

Part No CC45SL3AD471JYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 1KV SL RADIAL / 470 pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Capacitance 470 pF
Tolerance ±5%
Voltage - Rated 1000V (1kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.610" (15.50mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Other Names CC45SL3AD471JYNNA02
Standard Package 1,000
Win Source Part Number 1114489-CC45SL3AD471JYNNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3AD471JYNNA CAD Model

Description

The TDK Corporation CC45SL3AD471JYNNA is a ceramic capacitor that has a capacitance of 470pF and is rated for 1000V.

  • Capacitance: 470pF
  • Voltage Rating: 1000V
  • Category: Capacitors
  • Application: General Purpose
  • Package/Case: Radial, Disc
  • Height: 15.50mm
  • Tolerance: ±5%
  • Temperature Coefficient: SL
  • Lead Spacing: 7.50mm
  • Leads: Formed, Kinked
  • Temperature Range: -25°C to 125°C
