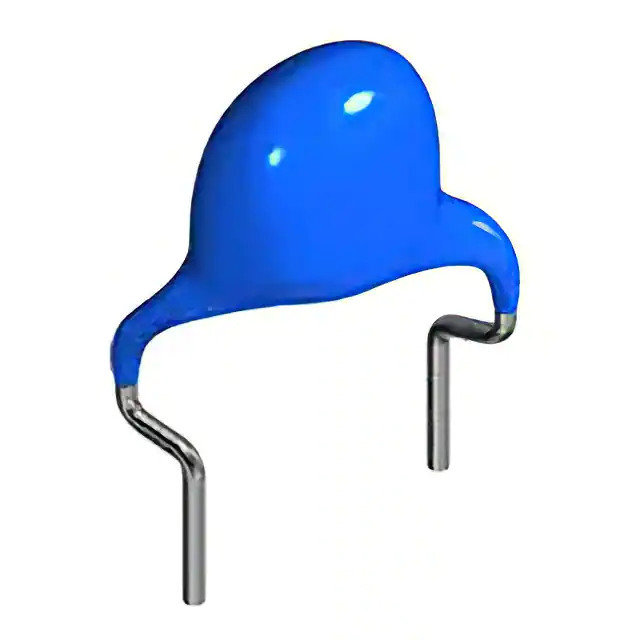

Same model may have multiple batches, images only for reference.
CC45SL3DD220JYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3DD220JYVNA

Part No CC45SL3DD220JYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 22PF 2KV SL RADIAL / 22 pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Product Status Active
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 2000V (2kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359930-CC45SL3DD220JYVNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3DD220JYVNA CAD Model

Description

The TDK Corporation CC45 series capacitor is a ceramic capacitor with a capacitance of 22 pF and a voltage rating of 2000V (2kV).

  • Capacitance: 22 pF
  • Voltage Rating: 2000V (2kV)
  • Tolerance: ±5%
  • Application: General purpose
  • Temperature Range: -25°C to 125°C
  • Package: Radial, disc
  • Mounting Type: Through-hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.217" Dia (5.50mm)
  • Height: 0.374" (9.50mm)
  • Manufacturer: TDK Corporation
