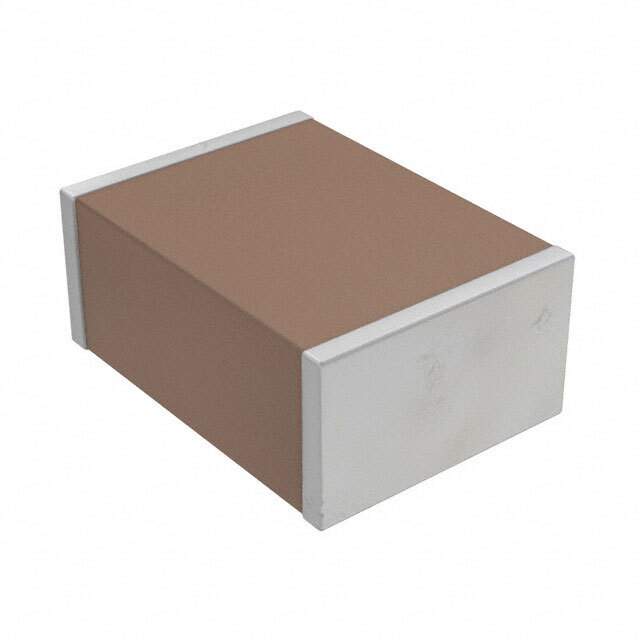

CGA8N3X7R2E474K230KA Real Image
Same model may have multiple batches, images only for reference.

CGA8N3X7R2E474K230KA

Part No CGA8N3X7R2E474K230KA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Automotive Grade ( Mid Voltage (100 to 630V) )
Datasheet
CGA8N3X7R2E474K230KA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CGA
Packaging Reel - TR
Capacitance 0.47μF
Tolerance ±10%
Voltage Rating DC 250V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Package 1812 (4532 Metric)
Size 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Maximum) 0.091" (2.30mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 722949-CGA8N3X7R2E474K230KA
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name CGA8
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CGA8N3X7R2E474K230KA CAD Model

Description

The TDK Corporation 722949-CGA8N3X7R2E474K230KA capacitor is from the CGA series and has a capacitance of 0.47μF.

  • Series: CGA
  • Capacitance: 0.47μF
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • AEC-Q200 Rated: Yes
  • Application: Automotive
  • Voltage Rating DC: 250V
  • Thickness (Maximum): 0.091" (2.30mm)
  • Supply and Demand Status: Limited
  • Quantity per package: 500
