Same model may have multiple batches, images only for reference.

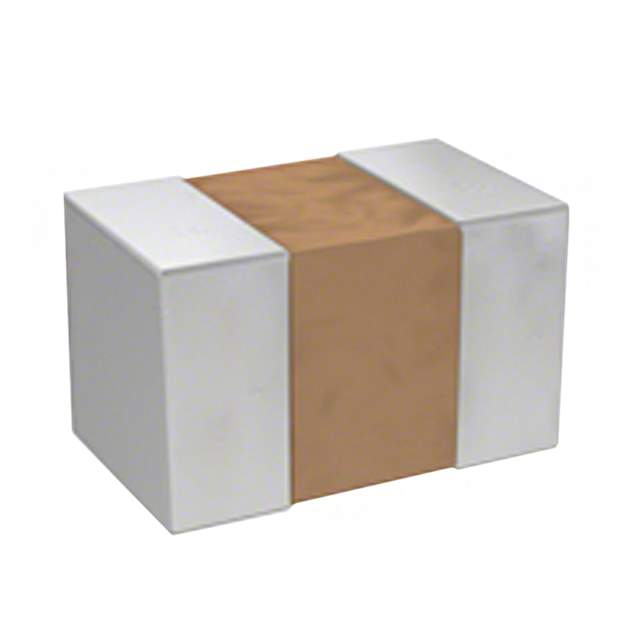

CGJ3E2C0G1H220J080AA Real Image
Same model may have multiple batches, images only for reference.

CGJ3E2C0G1H220J080AA

Part No CGJ3E2C0G1H220J080AA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 22PF 50V C0G 0603 / 22 pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Case / Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max) 0.035" (0.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 445-13327-6,CGJ3E2C0G1H220JT000N,445-13327-2,445-13327-1
Standard Package 4,000
Win Source Part Number 1330098-CGJ3E2C0G1H220J080AA
Ultra Librarian 3D Model Ultra Librarian CGJ3E2C0G1H220J080AA CAD Model

Description

The TDK Corporation CGJ3E2C0G1H220J080AA is a ceramic capacitor used in automotive applications.

  • Capacitance: 22 pF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Standard: AEC-Q200
  • Packaging: Reel - TR
  • Size/Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Thickness: 0.035" (0.90mm)
  • Mounting: Surface Mount, MLCC technology
  • Case/Package: 0603 (1608 Metric)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.24.0020
  • Other Part Numbers: 445-13327-6, CGJ3E2C0G1H220JT000N, 445-13327-2, 445-13327-1
  • Status: Not for new designs
  • ROHS3 Compliant: Yes
