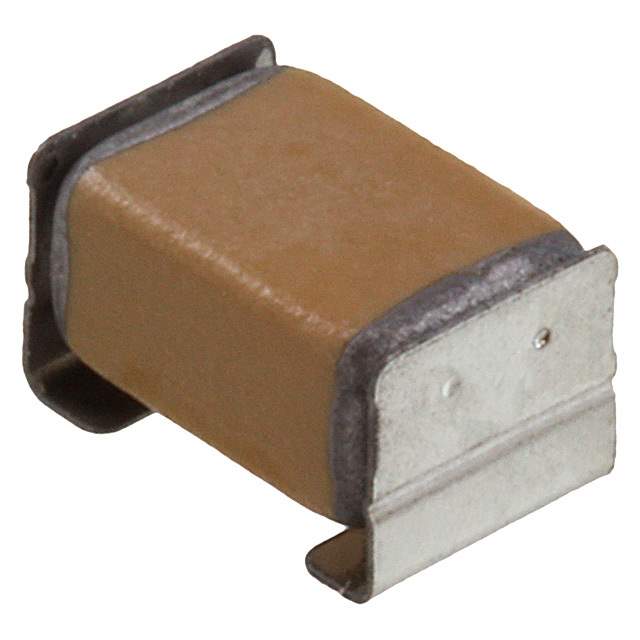

CKG45KX7R1C106M290JH Real Image
Same model may have multiple batches, images only for reference.

CKG45KX7R1C106M290JH

Part No CKG45KX7R1C106M290JH
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10UF 16V X7R SMD / Cap Ceramic 10uF 16V X7R 20% 1 Stacked 125°C T/R
Datasheet
CKG45KX7R1C106M290JH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series MEGACAP, CKG
Packaging Reel package
Capacitance 10μF
Tolerance ±20%
Voltage Rating DC 16V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features Low ESL
Applications SMPS Filtering, Bypass, Decoupling
Mounting Surface Mount, MLCC
Package Nonstandard SMD
Dimension 0.197" L x 0.138" W (5.00mm x 3.50mm)
Thickness (Maximum) 0.118" (3.00mm)
Lead Style J-Lead
Win Source Part Number 771526-CKG45KX7R1C106M290JH
Popularity Medium
Supply and Demand Status Limited
Family Name CKG45
Introduction Date June 26, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CKG45KX7R1C106M290JH CAD Model

Description

The CKG45KX7R1C106M290JH is a capacitor manufactured by TDK Corporation.

  • Series: MEGACAP CKG
  • Supply and Demand: Limited
  • Mounting Type: Surface Mount
  • Capacitance: 10μF
  • Voltage Rating: 16V
  • Win Source Part Number: 771526-CKG45KX7R1C106M290JH
  • Applications: SMPS filtering, bypass, and decoupling
