Same model may have multiple batches, images only for reference.

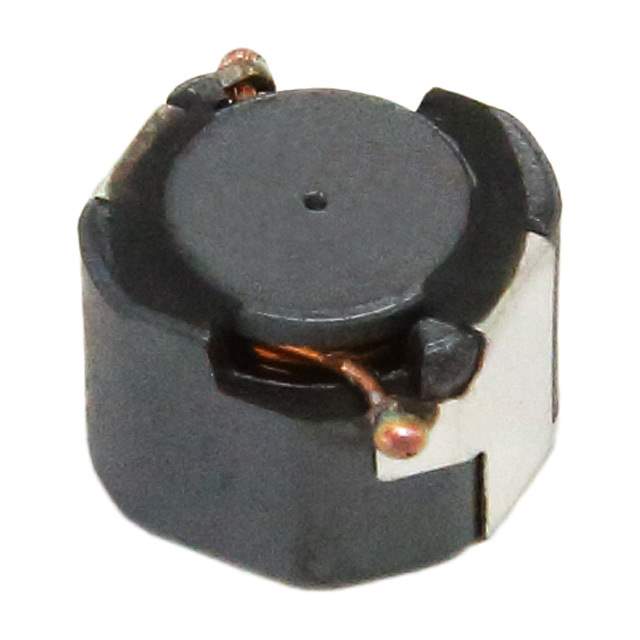

CLF6045T-470M-D Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-470M-D

Part No CLF6045T-470M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 1.3A 130 MOHM SMD / Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 1.3A 0.156Ohm DCR Automotive T/R
Datasheet
CLF6045T-470M-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CLF-D
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 1.3A
Current - Saturation 900mA
Shielding Shielded
DC Resistance (DCR) 156 mOhm Max
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 771590-CLF6045T-470M-D
Popularity Medium
Supply and Demand Status Balance
Family Name CLF-D
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CLF6045T-470M-D CAD Model

Description

The TDK Corporation CLF6045T-470M-D is a shielded inductor from TDK Corporation.

  • Series: CLF-D
  • Mounting: Surface Mounting
  • Inductance: 47μH
  • Current Rating: 1.3A (Maximum)
  • Operating Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Dimension: 0.244" L x 0.232" W (6.20mm x 5.90mm)
  • Ratings: AEC-Q200
  • DC Resistance: 156mOhm (Maximum)
  • Supply and Demand Status: Balanced
