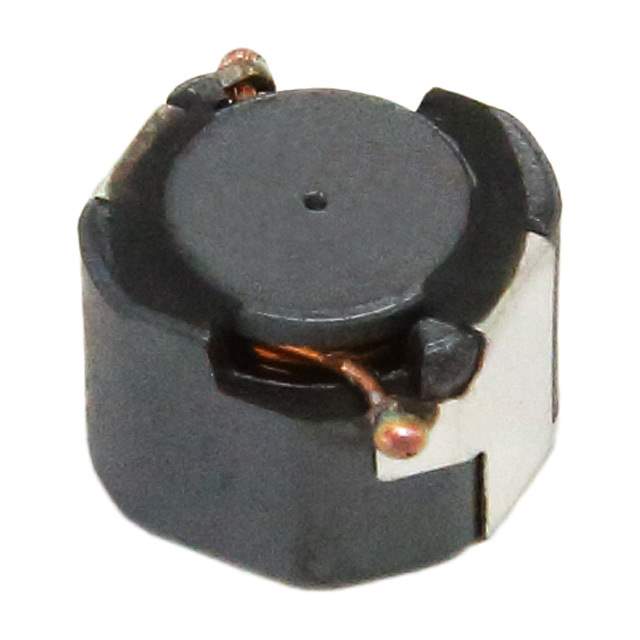

CLF6045T-680M Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-680M

Part No CLF6045T-680M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 1A 258 MOHM SMD / 68 µH Shielded Drum Core, Wirewound Inductor 1 A 258mOhm Max Nonstandard
Datasheet
CLF6045T-680M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 790mA
Shielding Shielded
DC Resistance (DCR) 258mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Max) 0.189" (4.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-15097-1,445-15097-2,445-15097-6
Standard Package 1,000
Win Source Part Number 1327785-CLF6045T-680M
Ultra Librarian 3D Model Ultra Librarian CLF6045T-680M CAD Model

Description

The TDK Corporation 1327785-CLF6045T-680M is a fixed inductors component used in various electronic devices.

  • Type: Drum Core, Wirewound
  • Shielding: Yes
  • Inductance: 68 µH
  • Tolerance: ±20%
  • Case/Package: Nonstandard
  • Size/Dimension: 0.244" L x 0.232" W (6.20mm x 5.90mm)
  • Seated Height: 0.189" (4.80mm)
  • Standard Package: 1,000
  • DC Resistance (DCR): 258mOhm Max
  • Operating Temperature: -40°C ~ 105°C
