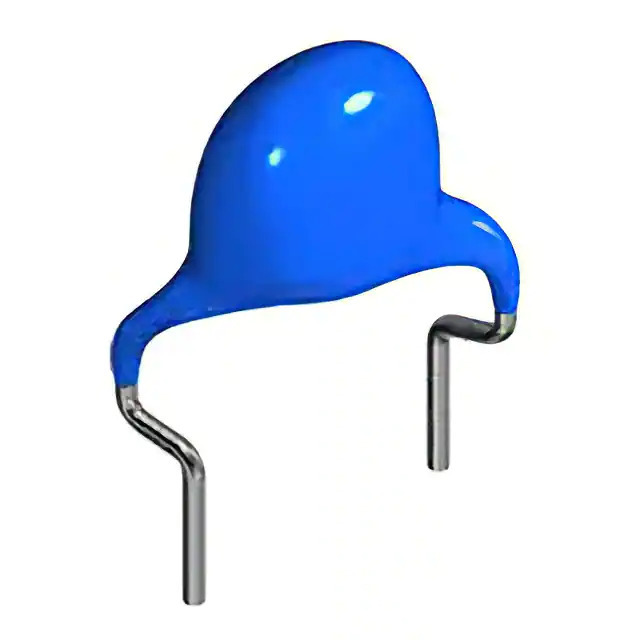

Same model may have multiple batches, images only for reference.

CS80ZU2GA222MYVKA

Name: CS80ZU2GA222MYVKA
Brand: TDK Corporation
SKU: 1360522
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CS80ZU2GA222MYVKA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 2200PF 300/440VAC Z5U / 2200 pF ±20% 300VAC/440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	TDK Corporation
Series	CS
Package	Tape & Box (TB)
Product Status	Obsolete
Capacitance	2200 pF
Tolerance	±20%
Voltage - Rated	300VAC/440VAC
Temperature Coefficient	Z5U
Temperature Range - Operating	-25°C ~ 125°C
Features	High Voltage
Ratings	X1, Y2
Applications	Safety
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.331" (8.40mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.25.0020
Win Source Part Number	1360522-CS80ZU2GA222MYVKA
Ultra Librarian 3D Model	Ultra Librarian CS80ZU2GA222MYVKA CAD Model

Alternative Products

Description

The TDK Corporation CS series ceramic capacitor is a high voltage capacitor with a capacitance of 2200 pF and a voltage rating of 300VAC/440VAC.

Application: Safety Applications
Capacitance: 2200 pF
Voltage Rating: 300VAC/440VAC
Tolerance: ±20%
Package: Radial, Disc
Mounting Type: Through Hole
Lead Spacing: 0.295" (7.50mm)
Size/Dimension: 0.315" Dia (8.00mm)
Seated Height: 0.331" (8.40mm)
Series: CS
Packaging: Tape & Box (TB)
Status: Obsolete
Operating Temperature: -25°C to 125°C
Failure Rate: Not Specified
Thickness: Not Specified
HTSUS Code: 8532.25.0020
ECCN: EAR99
