Same model may have multiple batches, images only for reference.

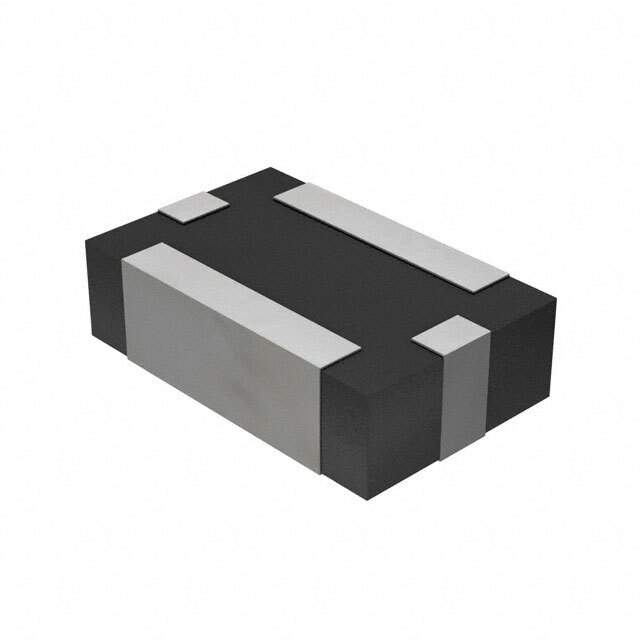

DEA162450BT-1262B1 Real Image
Same model may have multiple batches, images only for reference.

DEA162450BT-1262B1

Part No DEA162450BT-1262B1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 2.45GHZ WLAN SMD
Datasheet
DEA162450BT-1262B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Ripple 0.3dB
Insertion Loss 1.5dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Win Source Part Number 1032821-DEA162450BT-1262B1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-1262B1 CAD Model

Description

TDK Corporation introduces a high-performance band pass filter with a center frequency of 2.45GHz.

  • Manufacturer: TDK Corporation
  • Center Frequency: 2.45GHz
  • Bandwidth: 100MHz
  • Ripple: 0.3dB
  • Insertion Loss: 1.5dB
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Mounting Type: Surface Mounted
  • Height: 0.028" (0.70mm)
  • Packaging: Reel
