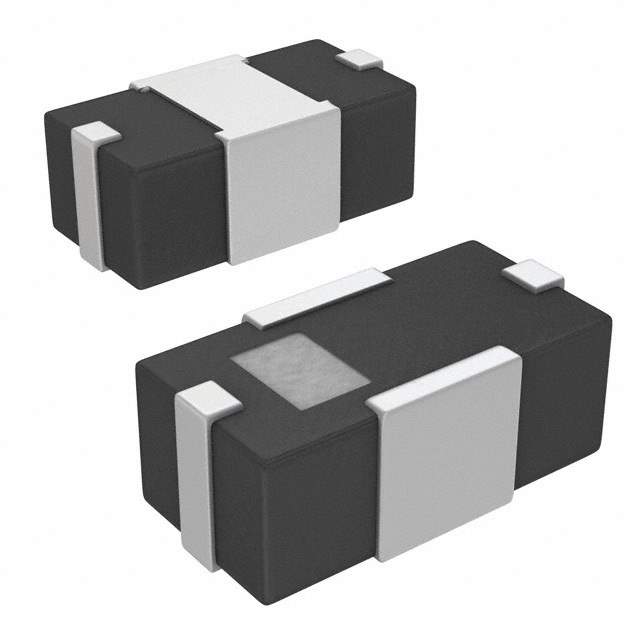

DEA205425BT-2028A4 Real Image
Same model may have multiple batches, images only for reference.

DEA205425BT-2028A4

Part No DEA205425BT-2028A4
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 5GHZ W-LAN SMD
Datasheet
DEA205425BT-2028A4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 5.425GHz Center
Bandwidth 1.05GHz
Filter Type Band Pass
Insertion Loss 2dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
Win Source Part Number 000619-DEA205425BT-2028A4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA205425BT-2028A4 CAD Model

Description

Overview

The DEA205425BT-2028A4 is a high-performance electronic component designed for versatile applications. Its compact design and exceptional performance ensure seamless integration into various projects, optimizing both functionality and efficiency.

Features and Benefits

  • High stability and reliability for demanding applications
  • Compact size suitable for space-constrained projects
  • Exceptional frequency accuracy and low phase noise

Applications

  • Telecommunications
  • Wireless networking
  • RF signal processing
  • Medical electronics

The DEA205425BT-2028A4 is the ideal choice for projects requiring precise signal control and reliability.
