Same model may have multiple batches, images only for reference.

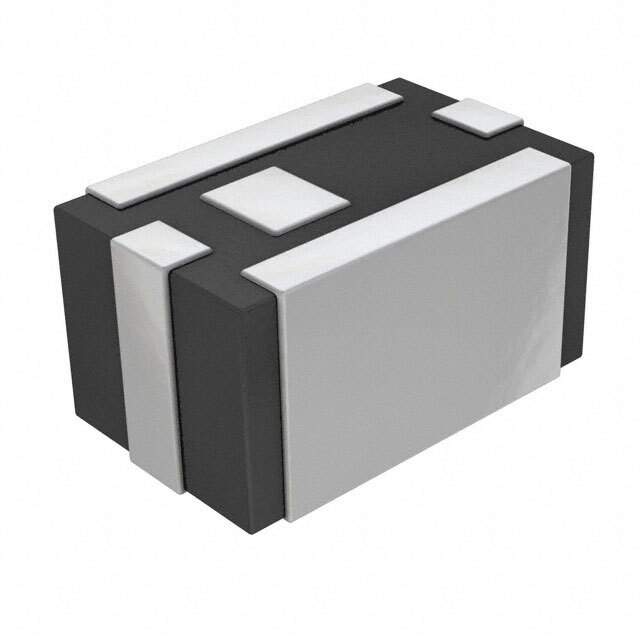

DEA202450BT-1195A1 Real Image
Same model may have multiple batches, images only for reference.

DEA202450BT-1195A1

Part No DEA202450BT-1195A1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 2.4GHZ WLAN SMD
Datasheet
DEA202450BT-1195A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Insertion Loss 2.3dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.039" (1.00mm)
Win Source Part Number 1032825-DEA202450BT-1195A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA202450BT-1195A1 CAD Model

Description

The DEA202450BT-1195A1 is a band pass filter from TDK Corporation.

  • Frequency: 2.45GHz center
  • Bandwidth: 100MHz
  • Applications: Wireless communication systems, WLAN, and Bluetooth.
  • Insertion Loss: 2.3dB
  • Mounting Technology: Surface mount
  • Popularity: Medium
  • Supply and Demand Status: Balanced
