Same model may have multiple batches, images only for reference.

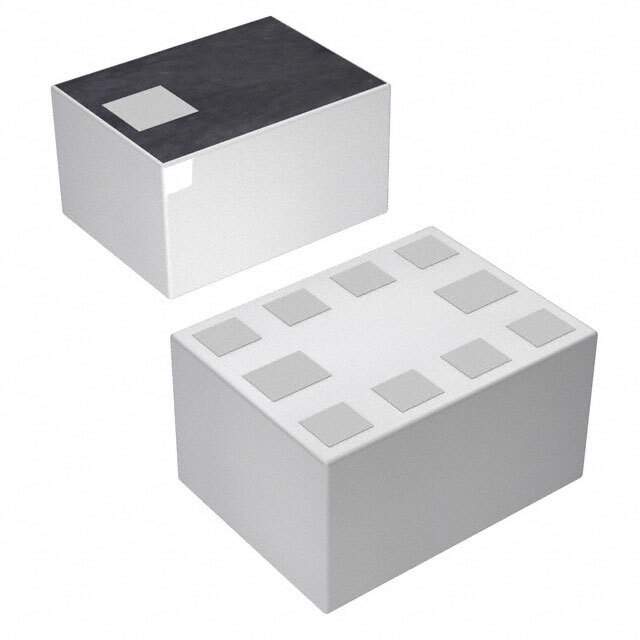

DEA211898BT-9033B1 Real Image
Same model may have multiple batches, images only for reference.

DEA211898BT-9033B1

Part No DEA211898BT-9033B1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER 914.5MHZ/1.915GHZ 0805 / Multilayer Band Pass Filter (Balance Output Type) (2in1)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Frequency 914.5MHz Center, 1.915GHz Center
Bandwidth 91MHz, 220MHz
Filter Type Balance
Insertion Loss 1.5dB, 1.9dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), 10 PC Pad
Dimension 0.079" L x 0.059" W (2.00mm x 1.50mm)
Height (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804486-DEA211898BT-9033B1
Ultra Librarian 3D Model Ultra Librarian DEA211898BT-9033B1 CAD Model

Description

The TDK Corporation DEA211898BT-9033B1 is a balance filter that operates at a center frequency of 914.5MHz and 1.915GHz.

  • Insertion Loss (914.5MHz): 1.5dB
  • Insertion Loss (1.915GHz): 1.9dB
  • Bandwidth (914.5MHz): 91MHz
  • Bandwidth (1.915GHz): 220MHz
  • Package: 0805 (2012 Metric)
  • Number of PC pads: 10
  • Height: 0.047" (1.20mm)
  • Mounting: SMD
  • Packaging: Reel
  • Popularity: Medium
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
