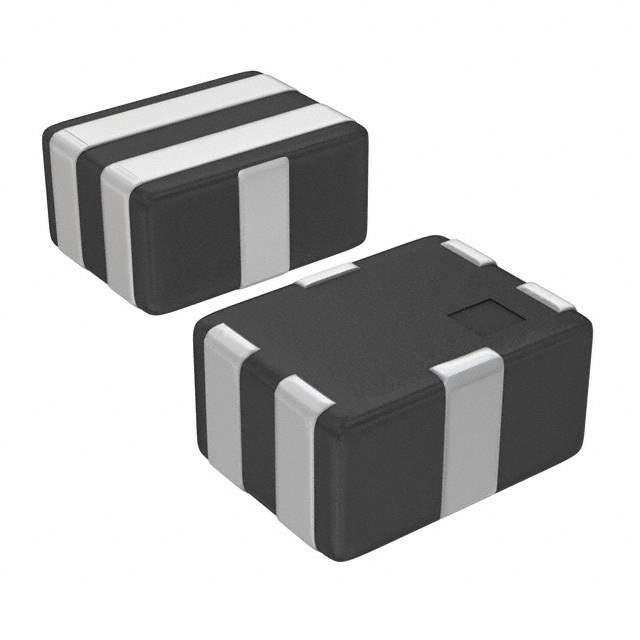

DEA212450BT-7043C1

Part No DEA212450BT-7043C1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 2.4GHZ 0805 SMD / RF Filter Band Pass 2450MHz 2400MHz to 2500MHz 3.9dB 50Ohm SMD 6Pin 0805 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Insertion Loss 3dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.059" W (2.00mm x 1.50mm)
Height (Max) 0.039" (1.00mm)
Win Source Part Number 118992-DEA212450BT-7043C1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DEA
Introduction Date July 26, 2001
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian DEA212450BT-7043C1 CAD Model

Description

Applications and Projects

  • Satellite communications
  • Military-grade devices
  • Advanced radar systems

Features and Benefits

  • Exceptional filtering capacity: Delivers precise control of frequency ranges for high-stakes applications.
  • Enhanced durability: Withstands challenging conditions, ensuring reliability in mission-critical operations.
  • Precision-engineered: Designed to support complex system requirements with minimal footprint.

With the DEA212450BT-7043C1, users gain a significant edge in high-frequency applications, especially within sensitive environments. This product stands out for its ability to deliver reliable performance in satellite and military applications.
