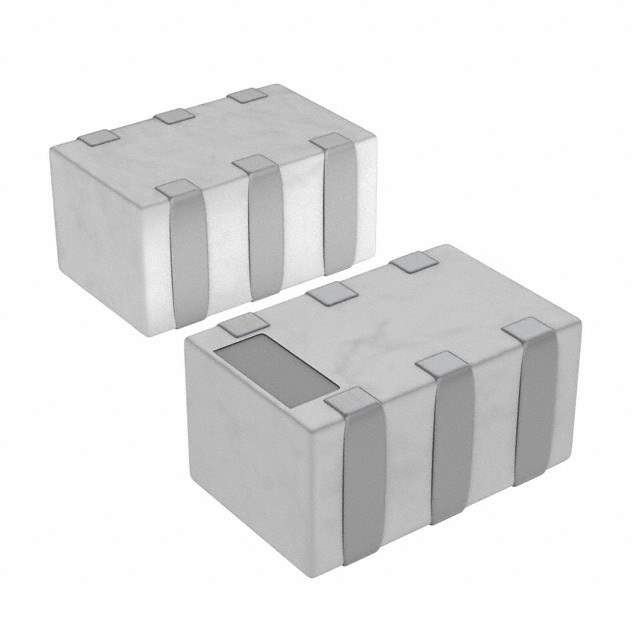

DPX202700DT-4062A1 Real Image
Same model may have multiple batches, images only for reference.

DPX202700DT-4062A1

Part No DPX202700DT-4062A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description Multilayer Diplexer | RF DIPLEXER 829MHZ/2.3GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Type Diplexer
Frequency Bands (Low / High) 698MHz ~ 960MHz / 1.9GHz ~ 2.7GHz
Low Band Attenuation (min / max dB) 25.00dB / 30.00dB
High Band Attenuation (min / max dB) 30.00dB / 39.00dB
Return Loss (Low Band / High Band) 26.0dB / 15.0dB
Mounting Style SMD
Manufacturer Package 0805 , 6 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 730604-DPX202700DT-4062A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPX202700DT-4062A1 CAD Model

Description

The DPX202700DT-4062A1 from TDK Corporation is a diplexer that operates in two frequency bands.

  • Low Frequency Band: 698MHz to 960MHz
  • High Frequency Band: 1.9GHz to 2.7GHz
  • Low Band Attenuation: 25.00dB to 30.00dB
  • High Band Attenuation: 30.00dB to 39.00dB
  • Return Loss (Low Band): 26.0dB
  • Return Loss (High Band): 15.0dB
  • Popularity: It is a medium popularity electronic component that is balanced in terms of supply and demand.
  • Package: The diplexer comes in an 0805 package with 6 PC pads.
