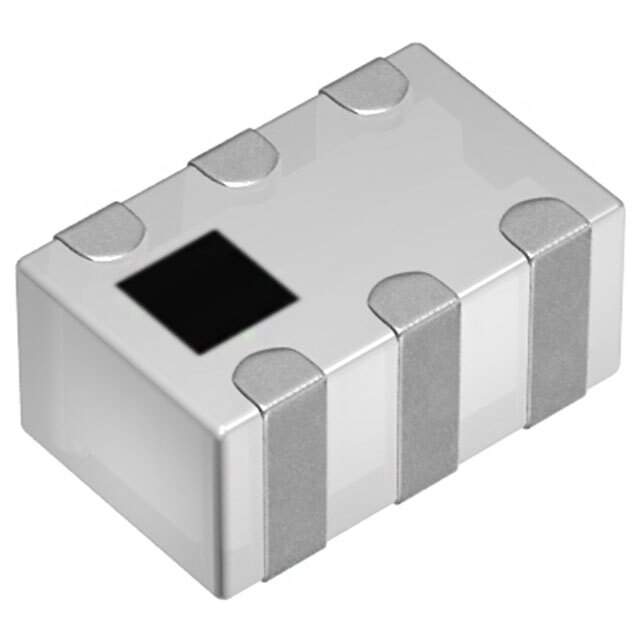

HHM1533 Real Image
Same model may have multiple batches, images only for reference.

HHM1533

Part No HHM1533
Manufacturer TDK Corporation
Catalog Balun
Description Multilayer Balun Transformers For W-CDMA Tx & Rx | MULTILAYER BALUN FOR 1920 - 2170
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Frequency Range 1.92GHz ~ 2.17GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 180° ±10°
Insertion Loss (Maximum) 1dB
Return Loss (Minimum) 10dB
Manufacturer Package 0805 , 6 PC Pad
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1180393-HHM1533
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HHM1533 CAD Model

Description

The TDK Corporation part number 1180393-HHM1533 is a high-quality component that is ideal for use in RF/IF and RFID applications manufactured by TDK Corporation.

  • Frequency Range: 1.92GHz ~ 2.17GHz
  • Impedance: 50 / 50Ohm
  • Phase Difference: 180° ±10°
  • Insertion Loss (maximum): 1dB
  • Return Loss (minimum): 10dB
  • Mounting Type: SMT
  • Packaging: Reel
  • Manufacturer Package: 0805, 6 PC Pad
  • Product Status: Active
  • Popularity: Medium
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
