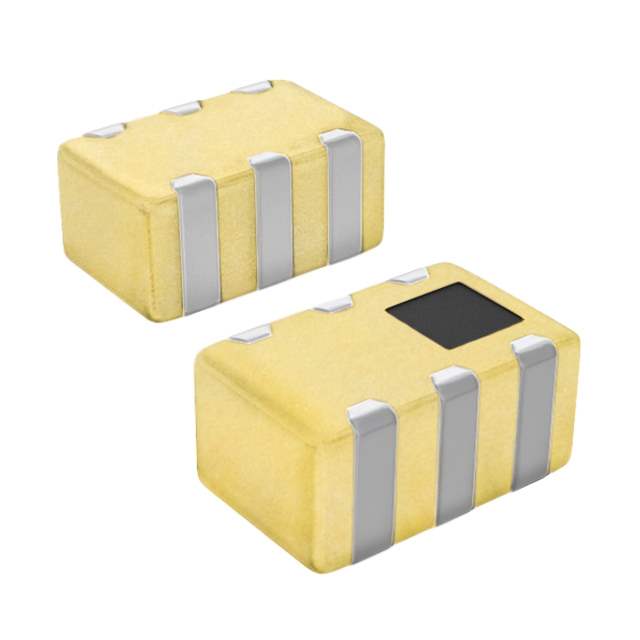

HHM1562B Real Image
Same model may have multiple batches, images only for reference.

HHM1562B

Part No HHM1562B
Manufacturer TDK Corporation
Catalog Balun
Description XFRMR BALUN RF 5.15GHZ WLAN SMD
Datasheet
HHM1562B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Range 5.15GHz to 5.875GHz
Impedance - Unbalanced/Balanced 50 / 100 Ohm
Phase Difference 180° ±10
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 001582-HHM1562B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HHM1562B CAD Model

Description

The TDK Corporation HHM1562B is a microwave bandpass filter that has a frequency range of 5.15GHz to 5.875GHz and an insertion loss (Max) of 1.0dB. This surface mount filter has an unbalanced/balanced impedance of 50 / 100 Ohm and a phase difference of 180° ±10. The return loss (Min) is 10dB. The HHM1562B is an excellent choice for use in various applications such as wireless LAN systems, Wi-Fi, and Bluetooth devices.
