HHM1589E1

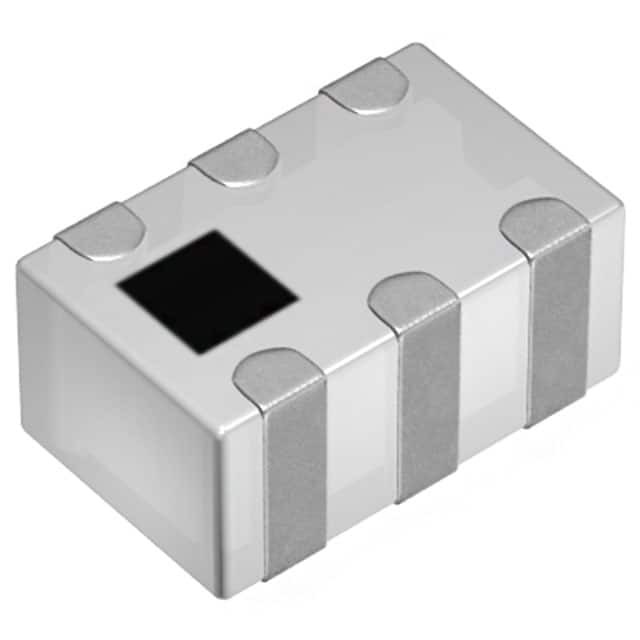

Same model may have multiple batches, images only for reference.

HHM1589E1

Part No HHM1589E1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 350MHZ-470MHZ 50/200 0805 / RF Balun 350MHz ~ 470MHz 50 / 200Ohm 0805 (2012 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Product Status Active
Frequency Range 350MHz ~ 470MHz
Impedance - Unbalanced/Balanced 50 / 200Ohm
Phase Difference 180° ±10°
Insertion Loss (Max) 1.5dB
Return Loss (Min) 9.54dB
Package / Case 0805 (2012 Metric), 6 PC Pad
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 920223-HHM1589E1
Ultra Librarian 3D Model Ultra Librarian HHM1589E1 CAD Model

Description

The HHM1589E1 is a balun component from TDK Corporation. It is an active product and is ECCN: EAR99 compliant.

  • Series: HHM
  • Category: RF and Wireless - Balun
  • Mounting: Surface Mount
  • Packaging: Tape & Reel
  • Standard Package Quantity: 2,000 pcs
  • Frequency Range: 350MHz to 470MHz
  • Impedance: 50/200 Ohm
  • Phase Difference: 180° ±10°
  • Insertion Loss: Maximum 1.5dB
  • Return Loss: Minimum 9.54dB
  • Package/Case: 0805 (2012 Metric), 6 PC Pad
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.31.2000
  • Product Status: Active
