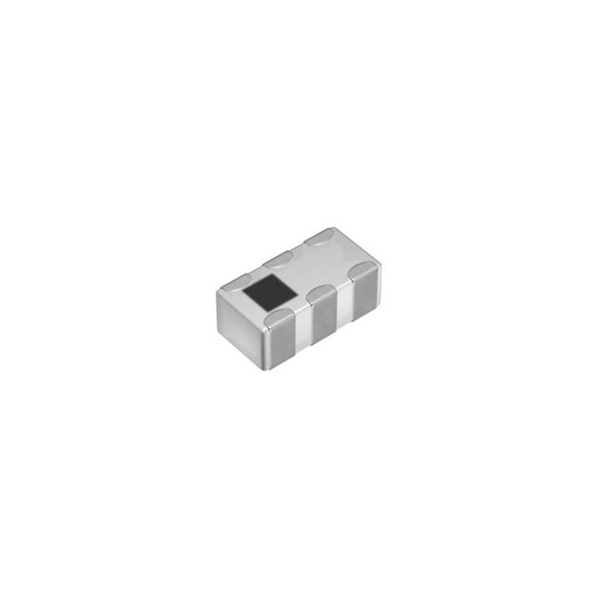

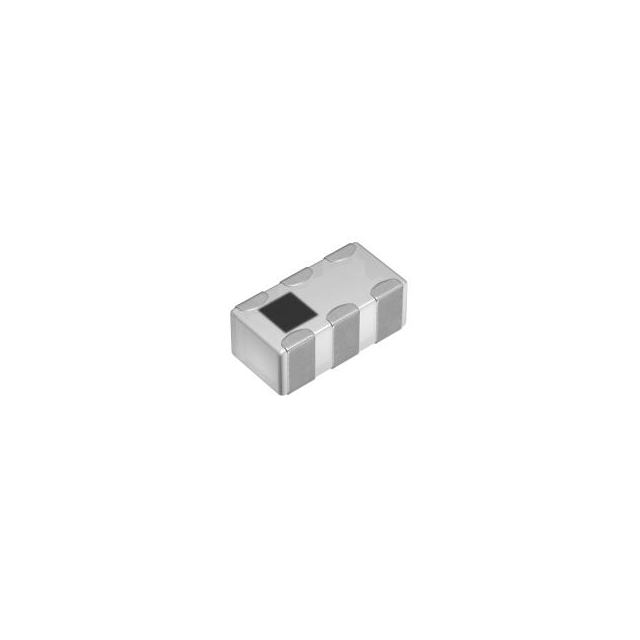

HHM1775D1 Real Image
Same model may have multiple batches, images only for reference.

HHM1775D1

Part No HHM1775D1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 3.1GHZ-4.9GHZ 50/100 0805  /  RF Balun 3.1GHz ~ 4.9GHz 50 / 100Ohm 0805 (2012 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Frequency Range 3.1GHz ~ 4.9GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 180° ±15°
Insertion Loss (Max) 1.2dB
Return Loss (Min) 10dB
Package / Case 0805 (2012 Metric), 6 PC Pad
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 445-175622-2,445-175622-1,445-175622-6
Standard Package 4,000
Win Source Part Number 1159214-HHM1775D1
Ultra Librarian 3D Model Ultra Librarian HHM1775D1 CAD Model

Description

The TDK Corporation HHM1775D1 is a high-quality Balun designed for use in RF/IF and RFID category electronic circuits.

  • Frequency Range: 3.1GHz ~ 4.9GHz
  • Impedance: 50 / 100Ohm
  • Phase Difference: 180° ±15°
  • Insertion Loss (max): 1.2dB
  • Return Loss (min): 10dB
