HHM1932A2 TDK Corporation

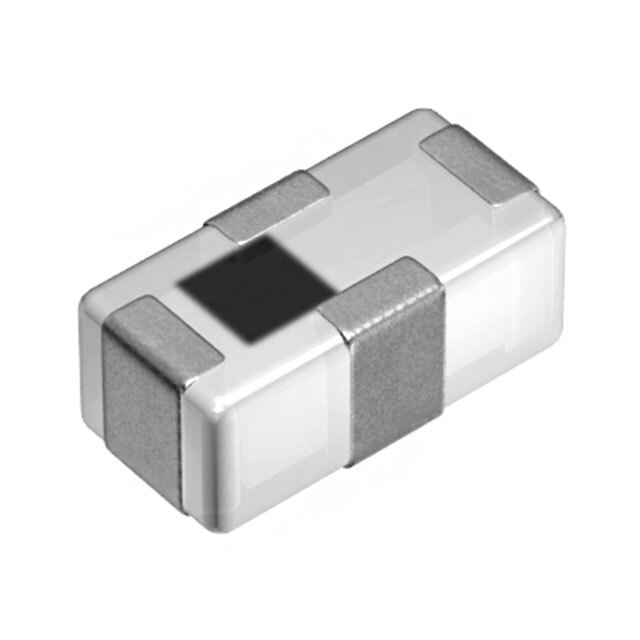

Same model may have multiple batches, images only for reference.

HHM1932A2

Part No HHM1932A2
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 862MHZ-894MHZ 50/100 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Product Status Active
Frequency Range 862MHz ~ 894MHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 180° ±10°
Insertion Loss (Max) 0.8dB
Return Loss (Min) 10dB
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 597710-HHM1932A2
Ultra Librarian 3D Model Ultra Librarian HHM1932A2 CAD Model

Description

The 597710-HHM1932A2 is a balun from the HHM series by TDK Corporation.

  • Series: HHM
  • Package: Tape and Reel
  • Standard Package: 10,000 pcs
  • Frequency Range: 862MHz to 894MHz
  • Impedance: 50/100Ohm (Unbalanced/Balanced)
  • Phase Difference: 180° ±10°
  • Maximum Insertion Loss: 0.8dB
  • Minimum Return Loss: 10dB
  • Mounting Type: Surface Mount
  • Package: 0402 (1005 Metric)
  • HTSUS Code: 8504.31.2000
  • Status: Active
