Same model may have multiple batches, images only for reference.

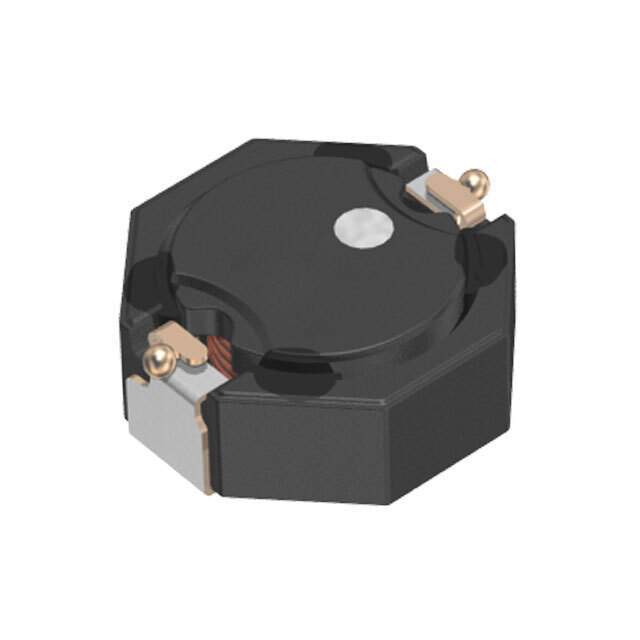

LTF5022T-6R8N1R7-D Real Image
Same model may have multiple batches, images only for reference.

LTF5022T-6R8N1R7-D

Part No LTF5022T-6R8N1R7-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.8A 110MOHM SMD / 6.8 µH Shielded Drum Core, Wirewound Inductor 1.8 A 110mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series LTF5022T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 1.7A
Shielding Shielded
DC Resistance (DCR) 110mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.197" W (6.50mm x 5.00mm)
Height - Seated (Max) 0.087" (2.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names LTF5022T-6R8N1R7-D-ND,445-16230-6,445-16230-1,445-16230-2
Standard Package 500
Win Source Part Number 1177420-LTF5022T-6R8N1R7-D
Ultra Librarian 3D Model Ultra Librarian LTF5022T-6R8N1R7-D CAD Model

Description

This electronic component is a fixed inductor belonging to the LTF5022T series and has a Win Source Part Number of 1177420-LTF5022T-6R8N1R7-D.

  • Type: drum core, wirewound
  • Shielding: feature
  • Inductance: 6.8 µH
  • Seated Height: 0.087" (2.20mm)
  • Standard Package: 500 units
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • AEC-Q200: rated
  • Core Material: ferrite
  • DC Resistance (DCR): 110mOhm Max
  • Temperature Range: -40°C ~ 105°C
  • Alternative Part: LTF5022T6R8N1R7D
  • REACH: unaffected
  • Current Rating: 1.8 A
  • Inductance Frequency-Test: 100 kHz
  • HTSUS code: 8504.50.4000
  • Manufacturer: TDK Corporation
