Same model may have multiple batches, images only for reference.

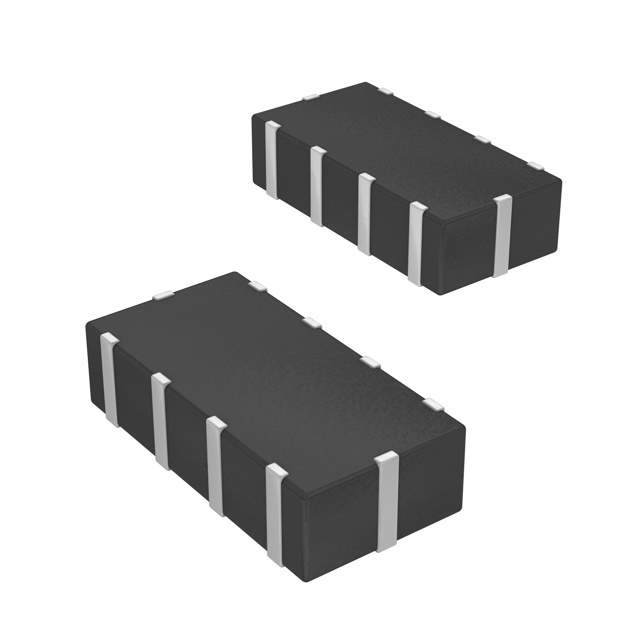

MEA3216L-25R0 Real Image
Same model may have multiple batches, images only for reference.

MEA3216L-25R0

Part No MEA3216L-25R0
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 25MHZ SMD
Datasheet
MEA3216L-25R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 25MHz (Cutoff)
Attenuation Value 20dB @ 300MHz to 1GHz
Current 100mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 208250-MEA3216L-25R0
Ultra Librarian 3D Model Ultra Librarian MEA3216L-25R0 CAD Model

Description

The TDK Corporation MEA3216L-25R0 is a low pass filter that is suitable for various applications in electronics.

  • Channels: 4-channel design
  • Voltage Rating: 10V
  • Attenuation Value: 20dB @ 300MHz to 1GHz
  • Cutoff Frequency: 25MHz
  • Mounting: SMD (SMT) technology
  • Current: 100mA
  • Component Status: obsolete (EOL)
  • Temperature Range: -40°C to 85°C
